Description
Key Product Features:
- 360° air discharge – delivers even air distribution in all directions, eliminating hot and cold spots
- High energy efficiency – A++ or A+ cooling / A+ heating energy class
- Inverter technology – continuously adjusts compressor speed to match real-time demand
- Wide capacity range – modulates output to avoid unnecessary energy use
- R32 refrigerant – low global warming potential (GWP) for reduced environmental impact
- 1-phase power supply – single phase ~230V, 50Hz for straightforward installation
- Round fascia panel included – sleek WHITE finish (PC4NUNMAN) for a modern ceiling aesthetic
- LCD colour wired controller included – full control via MWR-WG01JN NASA controller
- Long pipe runs supported – up to 50m or 75m depending on model
- Suitable for offices, retail spaces, restaurants, and hospitality environments

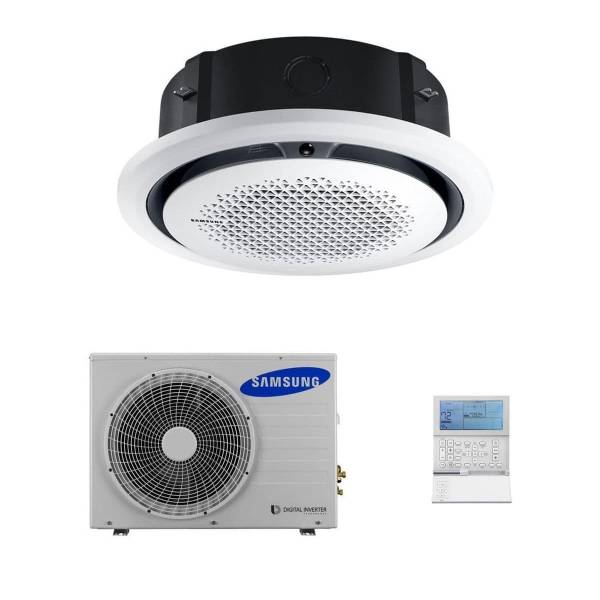

AC120RN4PKG/EU / AC120RXADKG/EU
| General | ||
| Indoor Unit | AC120RN4PKG/EU | |
| Outdoor Unit | AC120RXADKG/EU | |
| Power Supply | Single phase, ~230V, 50Hz | |
| Description | 1ph Inverter Heat Pump R32 360 Cassette | |
| Fascia Panel | PC4NUNMAN (360 Cassette Round WHITE) | |
| Controller | MWR-WG01JN (LCD Colour Wired) | |
| Capacity | ||
| Cooling (Rated) | kW | 12.0 |
| Cooling (Min–Max) | kW | 3.5–13.5 |
| Heating (Rated) | kW | 13.2 |
| Heating (Min–Max) | kW | 3.5–15.5 |
| Performance | ||
| SEER | W/W | 6.0 |
| SCOP | W/W | 4.0 |
| Energy | ||
| Energy Class (Cooling) | A+ | |
| Energy Class (Heating) | A+ | |
| Refrigerant & Piping | ||
| Refrigerant | R32 | |
| Max Fuse | A | 30 |
| Pipe Size (Liquid/Gas) | 3/8″, 5/8″ | |
| Max Pipe Length (Height) | m | 50 (30) |
| Pricing | ||
| Outdoor Unit (AC120RXADKG/EU) | £1,541.00 | |
| Indoor Unit (AC120RN4PKG/EU) | £810.00 | |
| Fascia Panel (PC4NUNMAN) | £157.00 | |
| Controller (MWR-WG01JN) | £99.00 | |
| System Price | £2,607.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
