Mitsubishi Heavy Industries Air Conditioning FDT100VH + FDC100VSX-W

Description

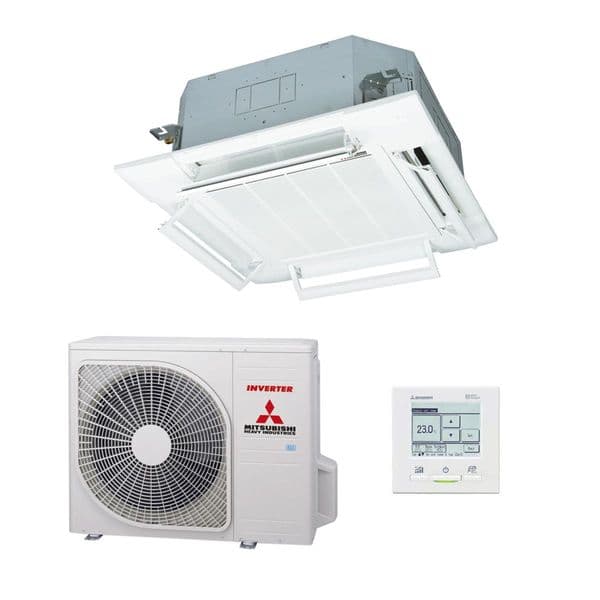

This Kit Includes:
1 x Mitsubishi Heavy Industries FDT100VH Cassette Indoor Unit (10kW, R32)
1 x Mitsubishi Heavy Industries FDC100VSX-W Outdoor Inverter Heat Pump Unit (10kW, R32, 3 Phase, 380–415V 50Hz)
1 x Mitsubishi Heavy Industries RC-EX1A Eco Touch Wired Remote Controller (2-wire PAC)
1 x Mitsubishi Heavy Industries Cassette Panel – Part No. T-PSA-5BW-E

Key Product Features
Ceiling cassette unit – ideal for shops, offices, restaurants, and open plan spaces
Slimline 298mm body with updated fascia and anti-smudge discharge
Full-function RC-EX1A Eco Touch controller included
7-Day / 24-Hour Programmable Timer
Dual ON/OFF settings per day with independent temperatures
External timer / BMS integration for group control (up to 16 units)
Integrated condensate lift pump
Inverter technology for efficient operation
Auto restart after power loss
Quiet operation with improved airflow and sound suppression
Long pipe runs – up to 100m
High C.O.P. and energy ratings

Technical Specifications
Indoor Unit – FDT100VH
Panel Part No.: T-PSA-5BW-E
Dimensions (H × W × D): 298 × 840 × 840 mm
Net Weight (with panel): 30 kg
Airflow (H/M/L) – Cooling: 26 / 23 / 17 m³/min
Airflow (H/M/L) – Heating: 26 / 23 / 17 m³/min
Sound Pressure – Cooling: 39 / 36 / 30 dB(A)
Sound Pressure – Heating: 39 / 36 / 29 dB(A)
Outdoor Unit – FDC100VSX-W
Dimensions (H × W × D): 1300 × 970 × 370 mm
Net Weight: 99 kg
Sound Pressure – Cooling/Heating: 53 / 51 dB(A)
Performance
UK Cooling Capacity: 9.53 kW
UK Sensible Cooling: 7.65 kW
Cooling Range (Nominal): 3.5 – 11.2 kW
Heating Range (Nominal): 2.7 – 16.0 kW
SEER / EER / Label: 8.00 / 4.38 / A++
SCOP / COP / Label: 4.44 / 4.45 / A+
Electrical
Power Supply: 3 Phase, 380 – 415V, 50Hz
MCB Rating: 20A per phase
Max Running Current: 14 A
Start Current: 5 A
Interconnect Cable: 3+E (1.5 mm²)
Refrigerant & Pipework
Refrigerant Type: R32
Precharged Amount: 4.0 kg (2.700 TCO₂Eq)
Pipe Size (Liquid / Suction): 3/8 in / 5/8 in
Max Piping Length: 100 m
Vertical Height Difference (Max): 50 m (above) / 15 m (below)
Precharged Pipe Length: Up to 30 m
Additional Refrigerant Charge: 54 g/m
