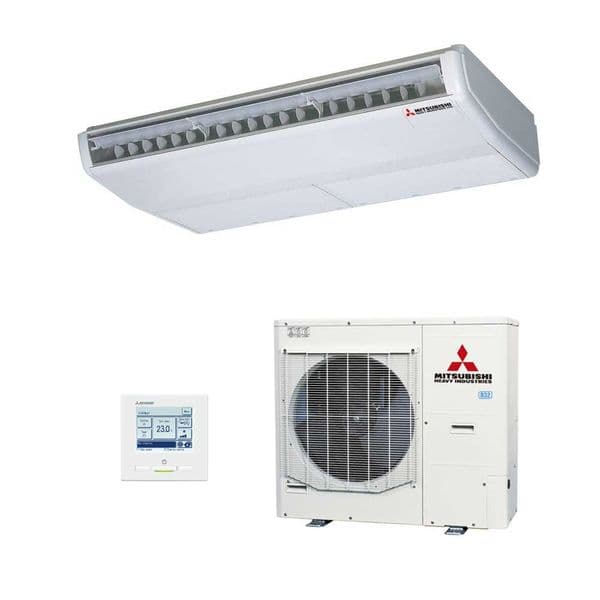

Mitsubishi Heavy Industries Air Conditioning FDE125VH + FDC125VSA-W

Description

This Kit Includes:
1 x Mitsubishi Heavy Industries FDE125VH Indoor Unit (12.5kW R32 Under Ceiling)
1 x Mitsubishi Heavy Industries FDC125VSA-W Outdoor Unit (Inverter Micro Heat Pump, 12.5kW, R32, 3 Phase, A+)
1 x Mitsubishi Heavy Industries RC-EX3A Eco Touch Wired Remote Controller (2-wire)

Key Product Features
Under ceiling installation – no ceiling void required
Slim, attractive fascia with rounded edges
Full-featured Eco Touch wired controller
7-Day / 24-Hour Programmable Timer
Two programmable daily ON/OFF timers with setpoint control
Quiet operation and high airflow performance
Auto-restart, low ambient operation, long pipe length support
Inverter technology for high seasonal efficiency
Optional IR control, motion sensor, and Wi-Fi interface
Enhanced heat exchanger with slit fins and inner grooved tubing

Technical Specifications
Indoor Unit – FDE125VH
Dimensions (H × W × D): 250 × 1620 × 690 mm
Net Weight: 43 kg
Airflow (H/M/L): 29 / 23 / 17 m³/min
Sound Pressure (H/M/L): 45 / 40 / 35 dB(A)
Outdoor Unit – FDC125VSA-W
Dimensions (H × W × D): 845 × 970 × 370 mm
Net Weight: 78 kg
Sound Pressure (Cooling/Heating): 54 / 65 dB(A)
Performance
UK Cooling Capacity: 11.58 kW
UK Sensible Cooling: 8.82 kW
Cooling Range (Nominal): 5.0 – 14.0 kW
Heating Range (Nominal): 4.0 – 16.0 kW
SEER / EER: 6.3 / 2.81
SCOP / COP: 4.30 / 3.74
Energy Labels: A++ (cooling), A+ (heating)
Electrical
Power Supply: 3 Phase, 380 – 415V, 50Hz
MCB Rating: 20A per phase
Max Running Current: 15 A
Start Current: 5 A
Interconnect Cable: 3+E (1.5 mm²)
Refrigerant & Pipework
Refrigerant Type: R32
Precharged Amount: 3.3 kg (2.228 TCO₂Eq)
Piping Length (Max): 50 m
Vertical Height Difference (Max): 50 m (above) / 15 m (below)
Pipe Size (Liquid / Suction): 3/8 in / 5/8 in
Additional Refrigerant Charge: 54 g/m (after 30 m)

Compatible Accessories
Product No.
Description
RCN-E-E3
IR Remote Control & Receiver Kit (for FDE**VG/F)
LB-E
Motion Sensor (for use with RC-EX3A Controller)
RCE5
Wired Controller
RCEX3A
Eco Touch Controller (included)
RCH-E3
Simplified Controller
PCZ006A043
6 Wire Adaptor
INMBSM-HI001R000
Modbus Interface – 1 Indoor Unit
INKNXM-HI001R000
KNX Interface – 1 Indoor Unit
SC-ADNA-E
Superlink Adaptor
IHWFIM-HI001R000
Intesis Home WiFi Interface (Hard Wired)
AZA16WSCMHI
Airzone Aido WiFi Module
SC-THB-E3
Remote Sensor (8m)
SSA42A024
Elbow for Condensate Drain Kit (1 required)
SSA947089
Grommet for Condensate Drain Kit (4 required)
