Description

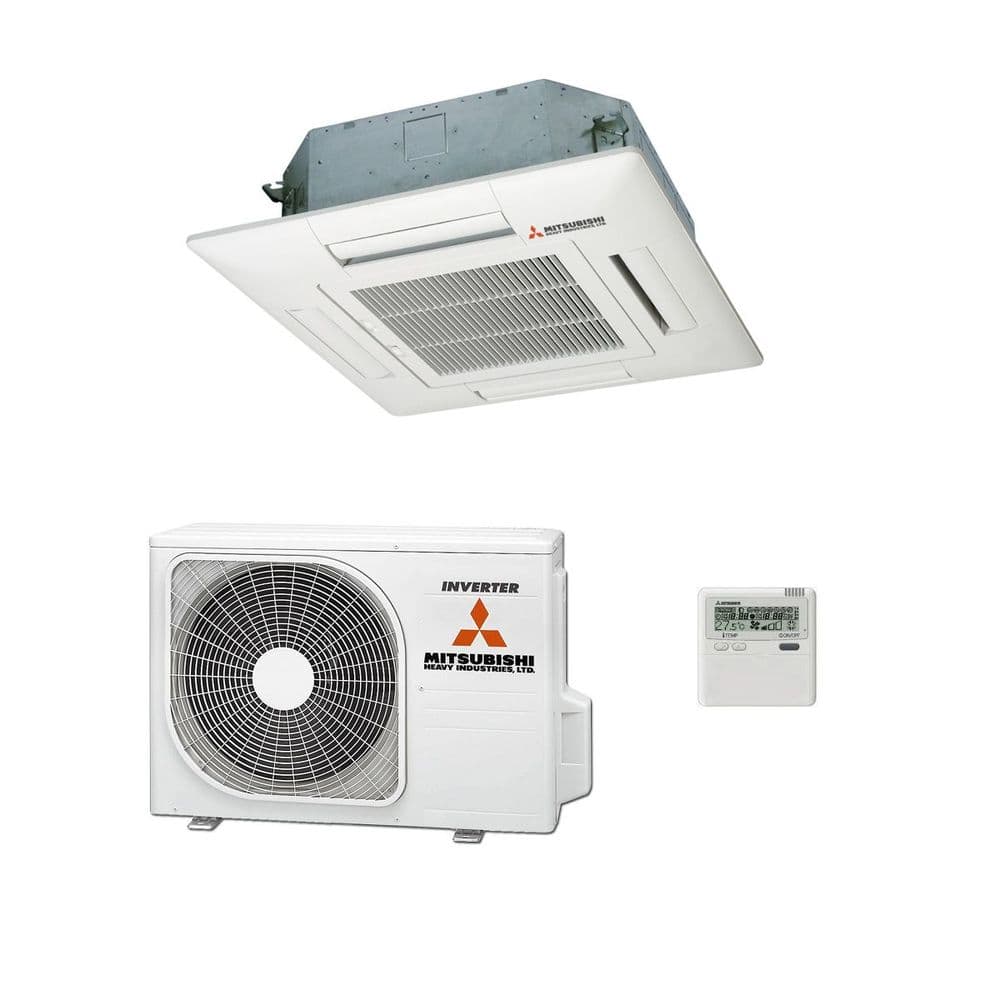

Mitsubishi Heavy Industries air conditioning has made a giant leap forward in air conditioning and heat pump technology with the development of the high performance FDT cassette range. The Mitsubishi Heavy Industries air conditioning mini split cassette units are ideal for commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The 7-Day Programmable Timer now included in standard controls specification. Cassette Heat Pumps for Commercial And Residential Applications. Ideal for large open plan areas, or irregular shaped rooms. High efficiency with low noise level
Technical Data:
| Indoor Unit Model | FDT 60VH | ||||
| Outdoor Unit Model | SRC 60 ZSX-S-R32 | ||||
| Type | DC Inverter | ||||
| Capacity (T=35°C) | Cooling | kW | 5.60 (1.10~6.30) | ||
| Power Input (T=+35° C) | Cooling | kW | 1.52 | ||
| Annual Consumption | Cooling | kWh/a | 255 | ||
| Energy Efficiency Class Seasonal | Cooling | 626/20111 | A++ | ||
| Energy Efficiency Class Seasonal Index | Cooling | SEER2 | 7.69 | ||
| Energy Efficiency Rated | Cooling | EER3 | 3.68 | ||
| Design load (Pdesignc) | Cooling | kW | 5.60 | ||
| Capacity (T=+7° C) | Heating | kW | 6.70 (0.60~7.10) | ||
| Power Input (T=7° C) | Heating | kW | 1.7 | ||
| Annual Consumption | Heating | kWh/a | 2139 | ||
| Energy Efficiency Class Seasonal | Heating | 626/20111 | A | ||
| Energy Efficiency Class Seasonal Index | Heating | SCOP2 | 3.86 | ||
| Energy Efficiency Rated | Heating | COP3 | 3.94 | ||
| Design load (Pdesignh) @-10°C | Heating | kW | 5.90 | ||
| T° operational limit (Tol) | Heating | °C | -15 | ||
| Power supply | Ph-V-Hz | 1-220~240V-50HZ | |||
| I.U. ~ O.U. | O.U. | ||||
| Input Rated Current (Cooling – Heating) | A | 6.9 – 7.9 | |||
| Wiring cables i.u./o.u. (without ground) | nb. | 3 | |||
| Refrigerant Pipe Liquid/Gas side | mm (inch.) | 6.35 (1/4”) – 12.7 (1/2”) | |||
| Max splitting distance I.U./O.U. | m | 30 | |||
| Max splitting level difference (O.U./I.U.-I.U./O.U.) | m | 20/20 | |||
| Refrigerant Precharge | Kg | 1.50 | |||
| MAX Splitting without Refrigerant Precharge | m | 15 | |||
| Refrigerant Precharge | g/m | 20 | |||
| Temperature range cooling | °C | -15°C~+43°C | |||
| Temperature range heating | °C | -15°C~+21°C | |||
| Indoor unit | Dimensions (HxWxD) | mm | 246x840x840 | ||
| Net weight | Kg | 24 | |||
| Indoor Noise level 1 m (Hi/Mi/Lo) | dB(A) | 33 | 31 | 30 | |
| Power sound level | dB(A) | 60 | |||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1080 | 960 | 840 | |
| Drain hose diameter | mm | 20 | |||
| Remote control (st. equipment) | type | – | |||
| Filter (st. equipment) | 1x | Polypropylene net filter | |||
| Filter (st. equipment) | 1x | – | |||
| Outdoor Unit | Dimensions (HxWxD) | mm | 640×800(+71)x290 | ||
| Net weight | Kg | 45 | |||
| Max noise level 1 m | dB(A) | 54 | |||
| Power sound level | dB(A) | 65 | |||
| Max air flow | m3/h | 2490 | |||
| Panel | T-PSA-3BW-E | ||||
| Dimensions (WxHxD) | mm | 35x950x950 | |||
| Net weight | Kg | 5.5 | |||
| Wired remote control (optional) | RC-E5 – RC-EX1A | ||||
| Basic wired remote control (optional) | RCH-E3 | ||||
| IR (KIT) – (optional) | RCN-T-36W-E | ||||
| SUPERLINK II Interface (optional) | SC-ADNA-E | ||||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
