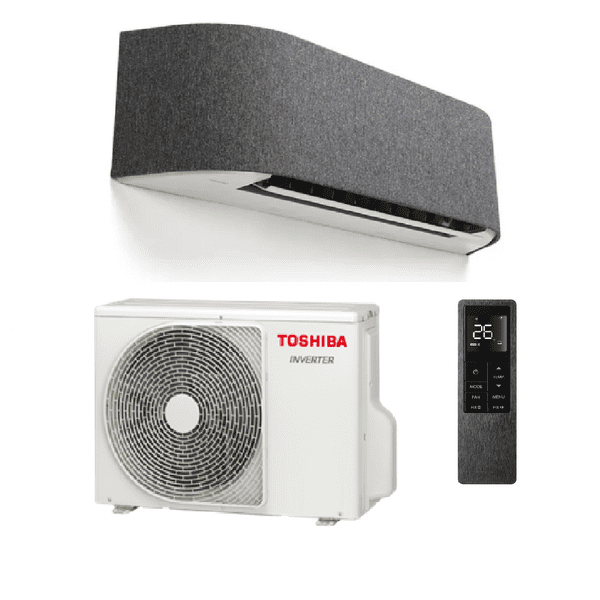

RAS High-Wall Inverter Split System – HAORI
The Toshiba HAORI 2.5kW wall-mounted system is a unique fusion of advanced HVAC engineering and premium interior design. Unlike conventional air conditioners, HAORI is built around a soft-curved chassis dressed in an interchangeable textile fabric cover, allowing homeowners and designers to integrate the unit seamlessly into contemporary, minimalist, or luxury decorative schemes. Whether installed in living rooms, bedrooms, boutique retail spaces or high-end apartments, HAORI becomes a design feature rather than a technical appliance.
Behind its refined exterior lies Toshiba’s high-performance R32 inverter platform, delivering exceptional seasonal efficiency with an A+++ cooling rating and A++ heating capability. The 2.5kW model provides responsive and stable temperature control even in challenging outdoor conditions, while maintaining whisper-quiet indoor acoustics as low as 19dB(A). This makes it ideal for noise-sensitive environments such as bedrooms, study areas and premium hospitality rooms
Technical Specifications:
| Category | Specification |
|---|---|
| Cooling Capacity | 2.5 kW |
| Heating Capacity | 3.2 kW |
| SEER | 8.60 |
| SCOP | 5.10 |
| Energy Rating (Cooling) | A+++ |
| Energy Rating (Heating) | A++ |
| Cooling Sound Pressure (Indoor) | 41 / 19 dB(A) |
| Heating Sound Pressure (Indoor) | 41 / 19 dB(A) |
| Indoor Airflow (Cooling) | 600 – 166 m³/h |
| Indoor Airflow (Heating) | 610 – 169 m³/h |
| Indoor Dimensions (H×W×D) | 300 × 987 × 210 mm |
| Indoor Weight | 11 kg |
| Outdoor Sound Pressure (Cooling) | 44 dB(A) |
| Outdoor Sound Pressure (Heating) | 46 dB(A) |
| Outdoor Dimensions (H×W×D) | 550 × 780 × 290 mm |
| Outdoor Weight | 32 kg |
| Compressor Type | DC Rotary |
| Refrigerant | R32 |
| Refrigerant Charge | 0.55 kg |
| Pipe Sizes (Liquid/Gas) | 1/4″ – 3/8″ |
| Max Pipe Length | 20 m |
| Max Height Difference | 12 m |
| Charge-Free Length | 15 m |
| Operating Range (Cooling) | –15°C to +46°C |
| Operating Range (Heating) | –15°C to +24°C |
| Power Supply | 230V / 1Ph / 50Hz |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
