RAV High-Wall – Digital Inverter Classic Series 1

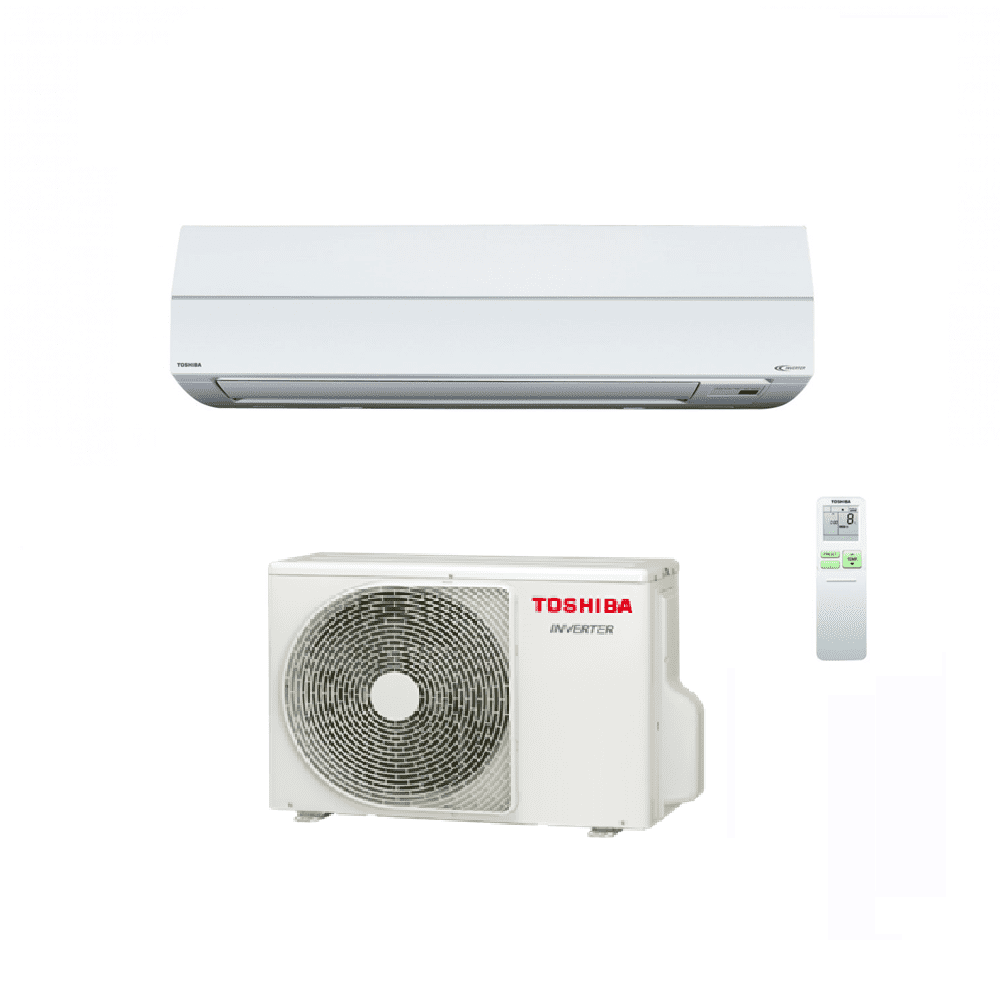

The Toshiba RAV-HM1101KRTP-E High-Wall Digital Inverter System is a high-performance commercial wall-mounted heat pump designed for medium to large professional spaces such as offices, meeting areas, classrooms, retail stores and hospitality environments. Built on Toshiba’s advanced Digital Inverter compressor platform, this 9.5 kW cooling / 10 kW heating system delivers exceptional efficiency, rapid temperature pull-down, and reliable year-round climate control even under demanding workloads.
The indoor unit uses a slim, modern chassis with powerful airflow distribution (447 l/s on high) to ensure fast, even conditioning throughout the room. Sound levels are tightly controlled—49 dB(A) in high mode dropping to 41 dB(A) on low—making it suitable for noise-sensitive commercial environments. Intelligent louvre control provides stable air distribution, while enhanced filtration and self-cleaning coil functions improve long-term hygiene and reduce maintenance.l.
Technical Data:
Cooling / Heating: 9.5 kW / 10 kW
UK Total/Sensible Cooling: 9.00 / 7.80 kW
UK Heating: 5.5 kW
Energy Label: A++ Cooling / A+ Heating
Indoor Dimensions (H×W×D): 348 × 1200 × 280 mm
Outdoor Dimensions (H×W×D): 630 x 800 x 300 mm
Indoor Airflow (H–M–L): 447 – 375 – 328 l/s
Outdoor Airflow (High): m3/h – l/s 2900 – 800
Sound Pressure (ID): 49 – 45 – 41 dB(A)
Sound Pressure (OD): 54 / 57 dB(A)
Power Supply: 220–240V / 1Ph / 50Hz
Interconnecting Cable: (3C+E)
Pipe Connections (liquid/gas): 5/8″ – 3/8″
Max Pipe Length: 30 m
Max Height Difference: 30 m
Charge-Free Length: 30 m
Refrigerant Additional Charge: Type/kg/g R32/1.7
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
