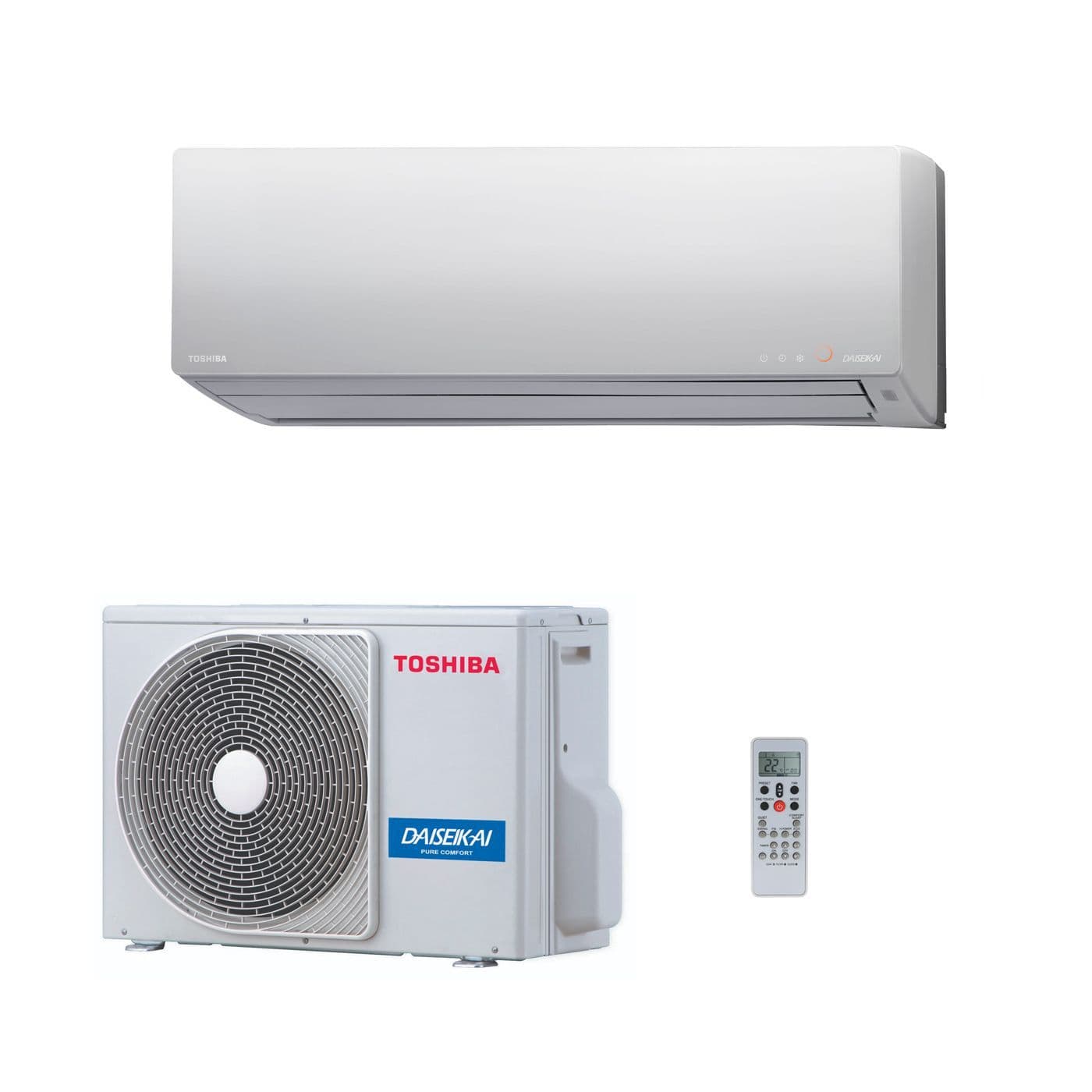

RAS High-Wall Inverter Split System – DAISEIKAI 10 White
The 3.5kW Toshiba DAISEIKAI 10 is a flagship high-wall inverter system engineered for premium residential comfort, low running costs and outstanding seasonal efficiency. Positioned at the top of Toshiba’s domestic line-up, the DAISEIKAI 10 delivers a blend of ultra-quiet operation, powerful heating performance, and superior indoor air quality technology.
The unit features a refined matt-finished casing with a slim appearance designed to sit naturally within modern homes. Its high-performance inverter drive and advanced airflow engineering offer rapid temperature pull-down and exceptionally stable operation even during harsh outdoor conditions. With an A+++ rating for both cooling and heating, the 3.5kW model achieves SEER 9.70 and SCOP 5.2, ensuring year-round performance with noticeably reduced electricity consumption.
Technical Specifications:
| Category | Specification |
|---|---|
| Indoor Unit Model | RAS-B13S4KVPG-E |
| Outdoor Unit Model | RAS-13S4AVPG-E |
| Cooling Capacity | 3.5 kW |
| Heating Capacity | 4.0 kW |
| SEER | 9.70 |
| SCOP (Average Climate) | 5.2 |
| Energy Rating (Cooling) | A+++ |
| Energy Rating (Heating) | A+++ |
| Cooling Operating Range | –15°C to +46°C |
| Heating Operating Range | –20°C to +24°C |
| Indoor Sound Pressure (Cooling – high/low/quiet) | 41 / 26 / 20 dB(A) |
| Indoor Sound Pressure (Heating – high/low/quiet) | 42 / 24 / 22 dB(A) |
| Indoor Airflow (Cooling – high/low) | 810 / 205 m³/h |
| Indoor Airflow (Heating – high/low) | 820 / 216 m³/h |
| Indoor Dimensions (H×W×D) | 293 × 930 × 255 mm |
| Indoor Weight | 14 / 16 kg (White / Wood options) |
| Outdoor Sound Pressure (Cooling / Heating) | 45 / 46 dB(A) |
| Outdoor Airflow (max) | 2160 / 600 m³/h |
| Outdoor Dimensions (H×W×D) | 630 × 800 × 300 mm |
| Outdoor Weight | 38 kg |
| Compressor Type | DC Twin Rotary |
| Refrigerant | R32 |
| Refrigerant Charge | 1.00 kg |
| Pipe Sizes (Liquid / Gas) | 3/8″ – 1/4″ |
| Minimum / Maximum Pipe Length | 2 m / 25 m |
| Maximum Height Difference | 15 m |
| Charge-Free Pipe Length | 15 m |
| Power Supply | 220–240V / 1Ph / 50Hz |
| Standard Remote Controller | WH-UD02UE |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
