Description
Key Product Features:
- Large high static ducted design – fully concealed above the ceiling for a completely unobtrusive finish
- High static pressure capability – suitable for longer duct runs and larger, more complex installations
- 3-phase power supply – 3ph R410A for high-capacity commercial applications
- Inverter technology – continuously adjusts compressor speed to match real-time demand
- Wide capacity range – modulates output across a broad range to avoid unnecessary energy use
- Separate 1-phase power supply required for indoor unit – flexible power configuration
- 3rd party in-line duct filters recommended – compatible with external filtration solutions
- Long pipe runs supported – up to 75m maximum pipe length for large building installations
- LCD colour wired controller included – full control via MWR-WG01JN NASA controller
- Suitable for large offices, retail spaces, restaurants, and commercial buildings

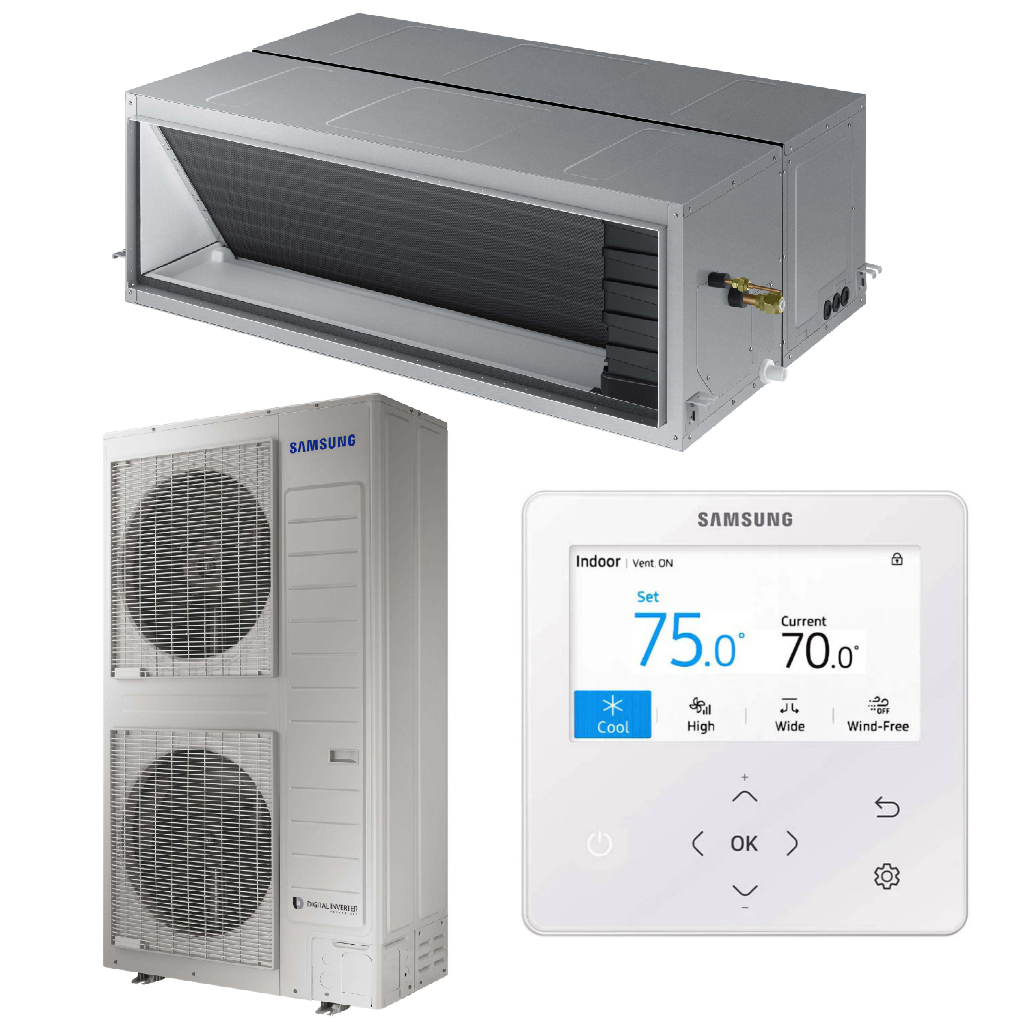

AC200KNHPKH/EU / AC200KXAPNH/EU
| General | ||
| Indoor Unit | AC200KNHPKH/EU | |
| Outdoor Unit | AC200KXAPNH/EU | |
| Power Supply (Outdoor) | 3 phase, R410A | |
| Power Supply (Indoor) | Separate 1 phase required | |
| Description | 3ph Inverter Heat Pump R410A Large High Static Ducted | |
| Controller | MWR-WG01JN (LCD Colour Wired) | |
| Capacity | ||
| Cooling (Rated) | kW | 20.0 |
| Cooling (Min–Max) | kW | 7.5–23.0 |
| Heating (Rated) | kW | 23.0 |
| Heating (Min–Max) | kW | 8.5–25.0 |
| Performance | ||
| EER | W/W | 3.1 |
| CoP | W/W | 3.5 |
| Refrigerant & Piping | ||
| Refrigerant | R410A | |
| Max Fuse | A | 30A/ph |
| Pipe Size (Liquid/Gas) | 3/8″, 3/4″ | |
| Max Pipe Length (Height) | m | 75 (30) |
| Pricing | ||
| Outdoor Unit (AC200KXAPNH/EU) | £2,623.00 | |
| Indoor Unit (AC200KNHPKH/EU) | £1,681.00 | |
| Controller (MWR-WG01JN) | £99.00 | |
| System Price | £4,403.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
