Description
WindFree™* Cooling technology maintains the desired temperature and eliminates cold drafts by delivering air through micro holes on the unit’s fascia panel when the louvers are closed, producing a dispersed and gentle flow of air defined as “still air.” The WindFree™* fascia panel includes a humidity sensor to prevent condensation by restricting WindFree™* operation in high humidity conditions. WindFree™* operation is available in cooling mode only. .
COMPACT SIZE
The WindFree™* Mini 4-Way Cassette fascia panel is designed to fit in a standard 2×2 ft. ceiling grid without interfering with adjacent ceiling tiles, lights, or sprinkler systems. The Samsung WindFree™ Mini 4-Way Cassette continues to impress with its advanced commissioning and service features. The removable EEPROM chip is a smart addition, enabling easy storage of unit settings, serial number, and other field-programmed data. This ensures smoother startup, commissioning, and future maintenance using Samsung’s service software (S-Net Pro2), making it a practical choice for long-term reliability.
Technical Specification:

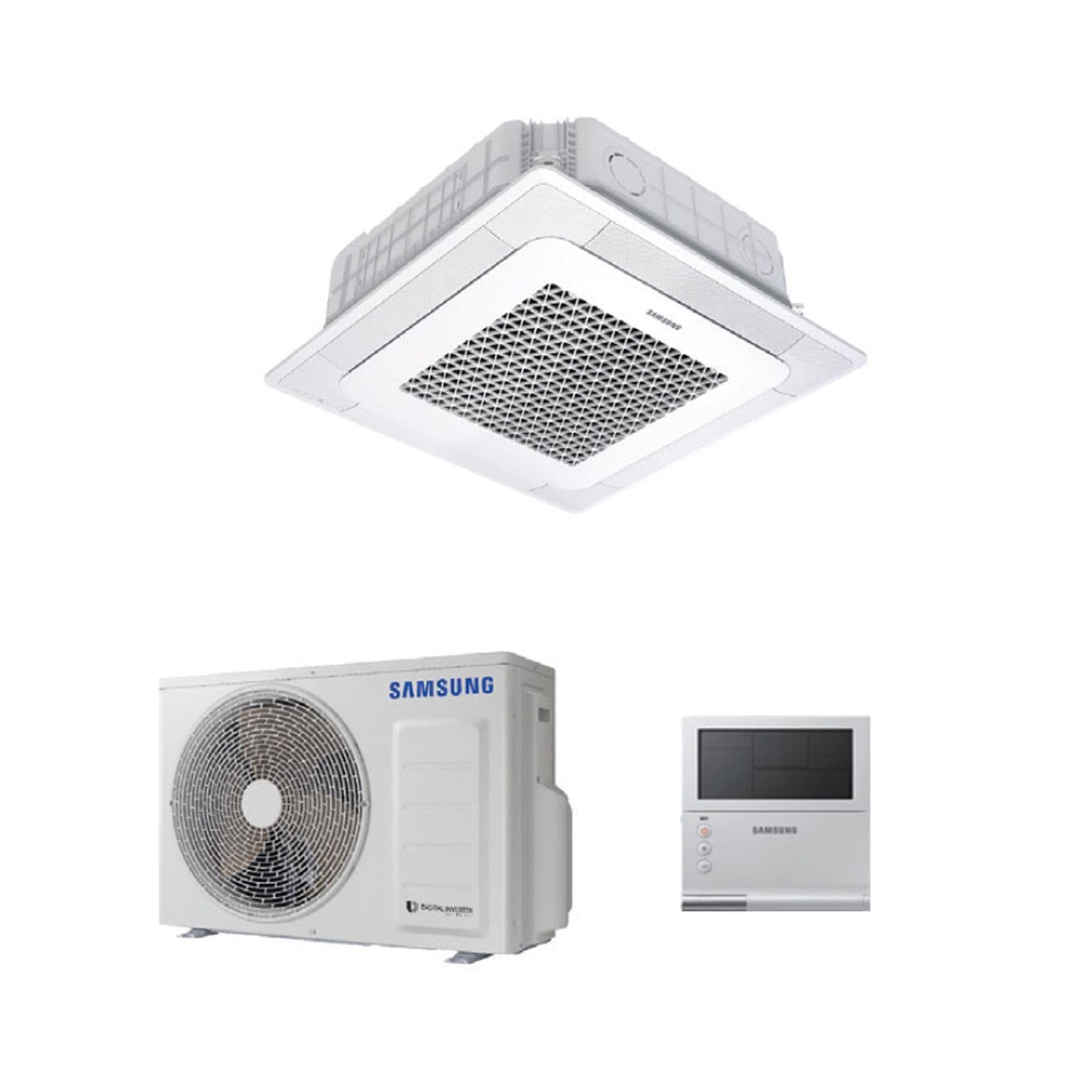

Outdoor Unit: AC035RXADKG/EU
Indoor Unit: AC035RNNDKG/EU
Cassette Panel: PC4SUFMAN
Cooling Capacity: 3.5kW (0.88–4.50kW)
Heating Capacity: 4.0kW (1.0–4.80kW)
SEER: 7.0 (A++)
SCOP: 4.3 (A+)
Sound Pressure (Indoor H/M/L): 34 / 30 / 25 dB(A)
Sound Pressure (Outdoor): 48 dB(A)
Indoor Dimensions (W × H × D): 575 × 250 × 575 mm
Outdoor Dimensions (W × H × D): 790 × 548 × 285 mm
Net Weight (Indoor): 11.5 kg
Net Weight (Outdoor): 32.5 kg
Refrigerant: R32
Pipe Connections: Liquid 1/4″ / Gas 3/8″
Max Pipe Length: 20 m
Max Height Difference: 15 m
Power Supply: 220–240V / 1Ph / 50Hz
Fuse Rating: 13A
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
