Description
Key Product Features:
- Large ceiling suspended design – no false ceiling required, installs directly beneath the ceiling
- High energy efficiency – A++ or A+ cooling / A+ heating energy class
- Inverter technology – continuously adjusts compressor speed to match real-time demand
- Wide capacity range – modulates output across a broad range to avoid unnecessary energy use
- R32 refrigerant – low global warming potential (GWP) for reduced environmental impact
- 1-phase power supply – single phase ~230V, 50Hz for straightforward installation
- Long pipe runs supported – up to 50m or 75m depending on model
- LCD colour wired controller included – full control via MWR-WG01JN NASA controller
- Wide air discharge – even temperature distribution across large floor areas
- Suitable for showrooms, open-plan offices, restaurants, and retail spaces

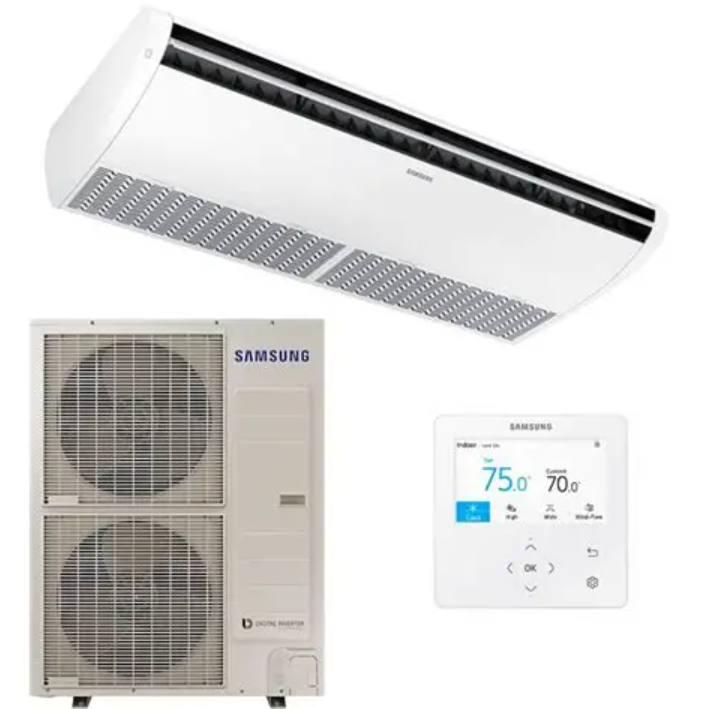

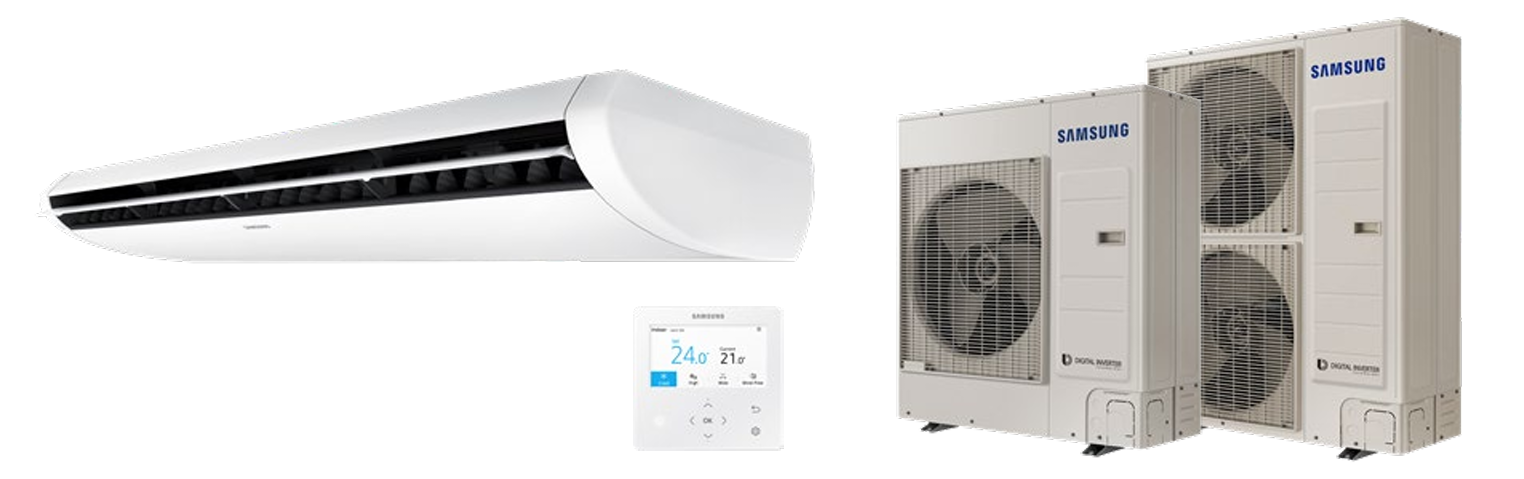

AC120RNCDKG/EU — Large Ceiling Suspended
| General | ||
| Indoor Unit | AC120RNCDKG/EU | |

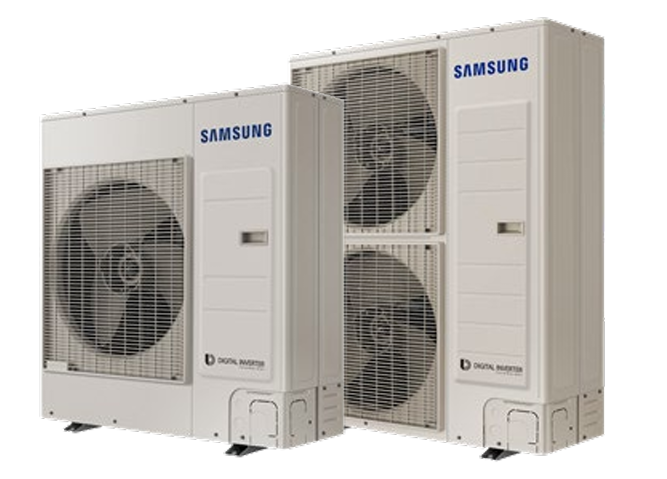

| Outdoor Unit (1 Phase) | AC120RXADKG/EU | |
| Outdoor Unit (3 Phase) | AC120RXADNG/EU | |
| Description | Inverter Heat Pump R32 Large Ceiling Suspended | |
| Controller | MWR-WG01JN (LCD Colour Wired) | |
| Capacity | ||
| Cooling (Rated) | kW | 12.0 |
| Cooling (Min–Max) | kW | 3.5–13.5 |
| Heating (Rated) | kW | 13.2 |
| Heating (Min–Max) | kW | 3.8–16.5 |
| Performance | ||
| SEER | W/W | 5.9 |
| SCOP | W/W | 4.0 |
| Energy | ||
| Energy Class (Cooling) | A+ | |
| Energy Class (Heating) | A+ | |
| Refrigerant & Piping | ||
| Refrigerant | R32 | |
| Pipe Size (Liquid/Gas) | 3/8″, 5/8″ | |
| Max Pipe Length (Height) | m | 50 (30) |
| Pricing — 1 Phase | ||
| Max Fuse | A | 30 |
| Outdoor Unit (AC120RXADKG/EU) | £1,541.00 | |
| Indoor Unit (AC120RNCDKG/EU) | £1,066.00 | |
| Controller (MWR-WG01JN) | £99.00 | |
| System Price | £2,706.00 | |
| Pricing — 3 Phase | ||
| Max Fuse | A | 20A/ph |
| Outdoor Unit (AC120RXADNG/EU) | £1,605.00 | |
| Indoor Unit (AC120RNCDKG/EU) | £1,066.00 | |
| Controller (MWR-WG01JN) | £99.00 | |
| System Price | £2,770.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
