Samsung Air Conditioning AC035RXADKG/EU Slim Duct

£1,150.00 ex. VAT

Samsung Air Conditioning AC035BNLDKG/EU Slim Duct Heat Pump R32 A++ 3.5kW / 12000Btu

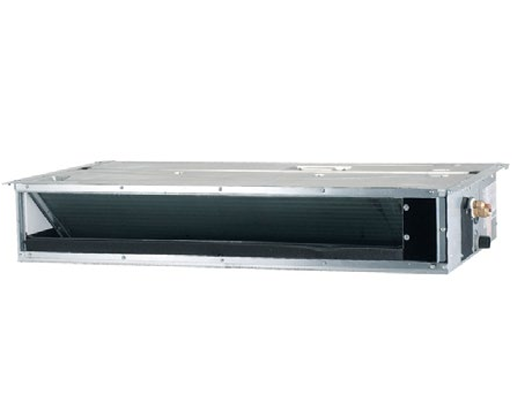

Perfect for small to medium spaces where discreet, concealed air conditioning is required, the AC035BNLDKG/EU slim duct unit is designed to be installed above a ceiling at just 199mm high and 440mm deep, making it ideal for homes, offices, retail spaces, and restaurants. The unit delivers reliable heating and cooling performance while maintaining low noise levels, ensuring a comfortable and quiet environment. Its slim, low-profile design allows for flexible installation in tight ceiling voids or bulkheads, offering a clean and unobtrusive finish. With the option to connect to multiple air outlets, it provides even air distribution and seamless integration into the room design, making it suitable for both residential and light commercial applications.

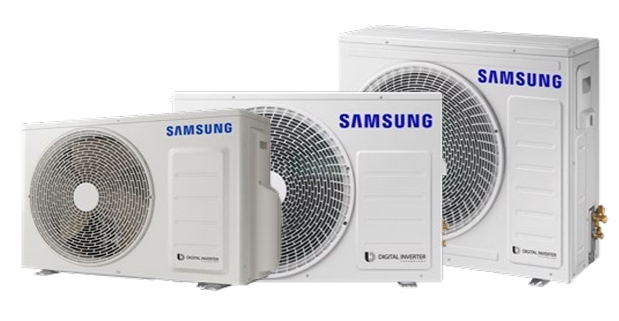

The Samsung R32 inverter outdoor unit (AC035RXADKG/EU) is engineered for efficiency and reliability, featuring advanced inverter technology that adjusts compressor speed to match real-time demand. This ensures optimal energy usage, achieving an excellent SEER of 6.1 and SCOP of 4.0, reducing consumption while maintaining consistent indoor comfort. The unit is compact and robust, capable of operating across a wide range of outdoor temperatures. By minimising temperature fluctuations and maintaining a stable indoor climate, it enhances comfort while keeping running costs low, making it an excellent choice for energy-conscious installations.

SKU: samsung-ac035rxadkg-eu-slim-duct Category: Tags: , , , Product ID: 32626

Description

Key Product Features:

  • Ultra-slim profile – only 199mm high and 440mm deep for installation in tight ceiling voids
  • High energy efficiency – A++ cooling / A+ heating energy class
  • Inverter technology – continuously adjusts compressor speed to match real-time demand
  • R32 refrigerant – low global warming potential (GWP) for reduced environmental impact
  • 1-phase power supply – single phase ~230V, 50Hz for straightforward installation
  • Wide capacity range – modulates output to avoid unnecessary energy use
  • LCD colour wired controller included – full control via MWR-WG01JN NASA controller
  • Flexible ducted installation – connects to multiple air outlets for even air distribution
  • Suitable for residential and light commercial applications

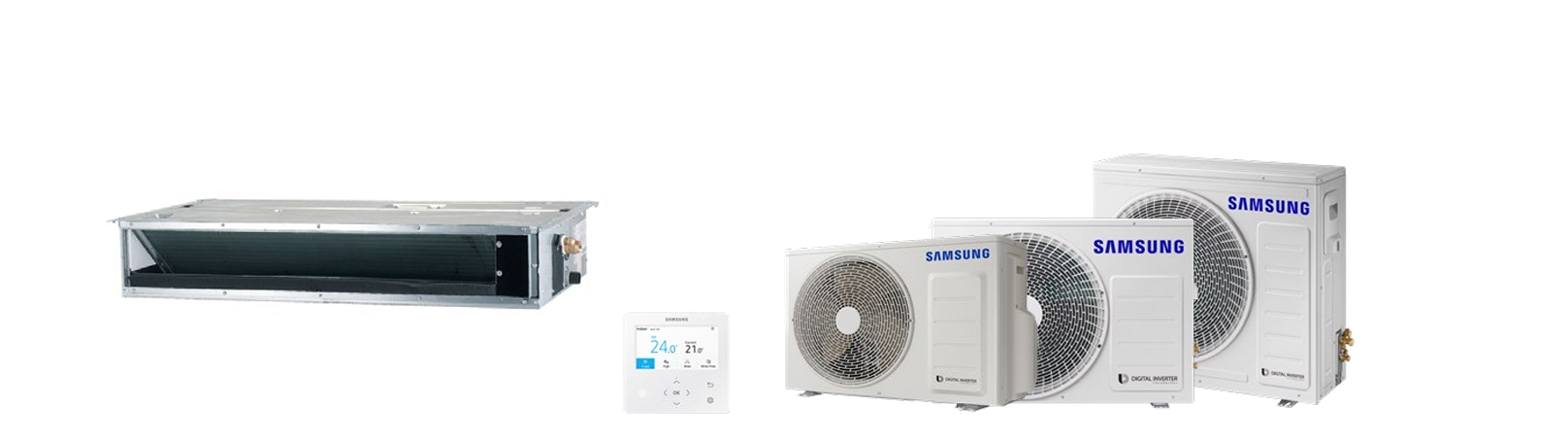

AC035BNLDKG/EU / AC035RXADKG/EU

General
Indoor Unit AC035BNLDKG/EU
Outdoor Unit AC035RXADKG/EU
Power Supply Single phase, ~230V, 50Hz
Description 1ph Inverter Heat Pump R32 Slim Duct
Controller MWR-WG01JN (LCD Colour Wired)
Capacity
Cooling (Rated) kW 3.5
Cooling (Min–Max) kW 0.85–4.3
Heating (Rated) kW 4.0
Heating (Min–Max) kW 1.0–5.0
Performance
SEER W/W 6.1
SCOP W/W 4.0
Energy
Energy Class (Cooling) A++
Energy Class (Heating) A+
Dimensions
Indoor Unit Height mm 199
Indoor Unit Depth mm 440
Refrigerant & Piping
Refrigerant R32
Max Fuse A 13
Pipe Size (Liquid/Gas) mm 1/4″, 3/8″
Max Pipe Length (Height) m 20 (15)
Pricing
Outdoor Unit (AC035RXADKG/EU) £664.00
Indoor Unit (AC035BNLDKG/EU) £387.00
Controller (MWR-WG01JN) £99.00
System Price £1,150.00
