Description
This Kit Includes:

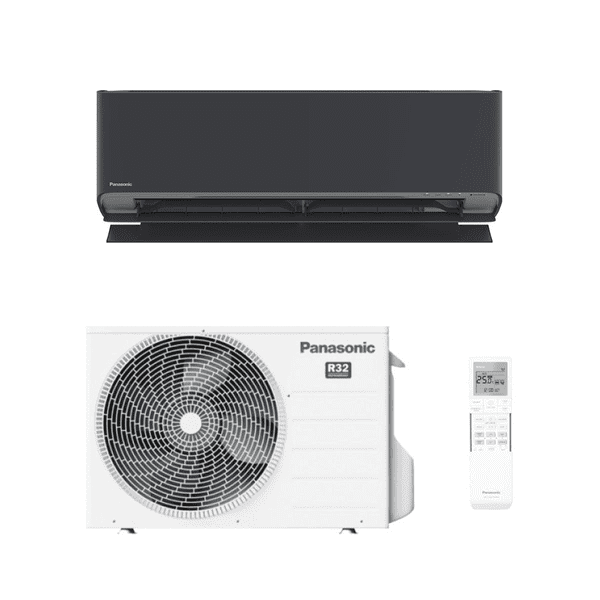

1 x Panasonic CS-XZ35ZKEW-H Indoor Unit (Graphite Grey Wall-Mount, R32, nanoe™ X, 3.5kW / 12,000Btu)
1 x Panasonic CU-Z35ZKE Outdoor Unit (Inverter Heat Pump, R32, 3.5kW / 12,000Btu, 220–240V~50Hz)
1 x Panasonic Back-lit Sky Controller (IR Remote, Wired controller optional)
15 m of 1/4″ & 3/8″ copper pipework
15 m of interconnecting cable
15 m of pipe insulation
1 x Pack of cable ties
1 x 60Kg Premium wall bracket for outdoor unit
Key Product Features
nanoe™ X Mark 3 air purification – removes 99% of airborne & surface bacteria, viruses, mould
Heating, cooling, dehumidification, and air purification modes
Built-in Wi-Fi – control via Panasonic Comfort Cloud App
Voice Control – works with Google Assistant & Amazon Alexa
Ultra-quiet operation – down to 19 dB(A) in Quiet Mode
Sleek graphite grey finish – award-winning design (iF Design Award)
Mild Dry Cooling Mode – prevents dry air discomfort
Hot Start Mode – no cold drafts on heating startup
Real-time clock with ON/OFF timer
15m max pipe length and 15m elevation height
Self-diagnosis & easy maintenance access
R32 refrigerant for reduced environmental impact
Technical Specifications
Cooling
Capacity (Nominal): 3.50 kW (Min: 0.85 – Max: 4.20)
EER: 4.27 (Min: 4.25 – Max: 3.62)
SEER: 8.70 / 9.50 (A+++)
Input Power: 0.82 kW (Min: 0.20 – Max: 1.16)
Annual Energy Consumption: 129 kWh
Heating
Capacity (Nominal): 4.00 kW (Min: 0.80 – Max: 5.50)
Heating Capacity at -7°C: 3.20 kW
COP: 4.55 (Min: 4.44 – Max: 3.77)
SCOP: 4.80 A++ / 5.20 A+++
Input Power: 0.88 kW (Min: 0.18 – Max: 1.46)
Annual Energy Consumption: 781 kWh
Indoor Unit – CS-XZ35ZKEW-H
Power Supply: 230 V
Recommended Fuse: 16 A
Connection (Indoor/Outdoor): 4 x 1.5 mm²
Air Flow (Cool/Heat): 12.7 / 14.4 m³/min
Moisture Removal: 2 L/h
Sound Pressure [dB(A)]:
Cool: 42 (Hi), 28 (Lo), 19 (Q-Lo)
Heat: 43 (Hi), 33 (Lo), 19 (Q-Lo)
Dimensions (H x W x D): 295 × 870 × 229 mm
Net Weight: 11 kg
nanoe™ X Generator: Mark 3
Outdoor Unit – CU-Z35ZKE
Air Flow (Cool/Heat): 29.8 / 29.8 m³/min
Sound Pressure [dB(A)]: Cooling: 48 / Heating: 50
Dimensions (H x W x D): 542 × 780 × 289 mm
Net Weight: 31 kg
Refrigerant & Installation
Pipe Diameter:
Liquid: 1/4″ (6.35 mm)
Gas: 3/8″ (9.52 mm)
Pipe Length Range: 3 – 15 m
Pre-charged Pipe Length: 7.5 m
Additional Gas Charge: 10 g/m
Elevation Difference (in/out): Max 15 m
Refrigerant Type: R32
Refrigerant Amount / CO₂ Eq.: 0.81 kg / 0.55 T
Operating Range (°C):
Cooling: -10 ~ +43
Heating: -20 ~ +24
Accessories
Product Code
Description
CZ-CAPRA1
RAC Interface Adaptor for P‑Link integration
PAW-SMSCONTROL
SMS Control Module (SIM card required)
CZ-RD514C
Wired Remote Controller (optional)
