Panasonic Etherea KIT-XZ20-XKE Silver

Description

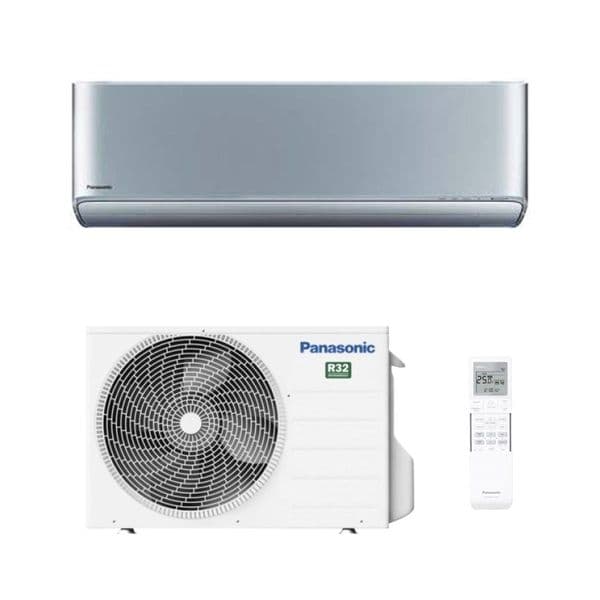

This Kit Includes:
1 x Panasonic CS-XZ20XKEW-H Wall-Mounted Indoor Unit
1 x Panasonic CU-Z20XKE Outdoor Condenser Unit
1 x Remote Controller
1 x Built-in Wi-Fi module (pre-installed)

Key Product Features
nanoe™ X Generator Mark 2 for 24/7 air purification via hydroxyl radicals
Built-in Wi-Fi and Panasonic Comfort Cloud App for remote control and scheduling
Compatible with Google Assistant and Amazon Alexa
Aerowings 2.0 technology for optimal airflow and comfort
Slim and stylish Graphite Grey indoor unit (295 mm height)
Outstanding A++ energy efficiency for both cooling and heating
Super quiet indoor sound pressure: as low as 19 dB(A)
Wide operating range: down to -15°C in heating, -10°C in cooling
Intelligent airflow, dehumidification, and timer settings
Quick and easy installation with compact chassis and simplified connections

Technical Specifications
System Details
Model Number (Kit): KIT-XZ20-XKE-H
Indoor Unit: CS-XZ20XKEW-H
Outdoor Unit: CU-Z20XKE
Refrigerant: R32 (0.67 kg / 0.45 TCO₂Eq)
nanoe™ X Generator: Mark 2
SEER / SCOP: 8.10 / 4.80 (A++)
Pdesign Cooling / Heating @ -10°C: 2.1 kW / 2.1 kW
Annual Energy Consumption Cooling / Heating: 91 kWh / 613 kWh
Wi-Fi Connectivity: Built-in
Cooling
Nominal Capacity: 2.05 kW
Capacity Range: 0.75 – 2.65 kW
Input Power (Nominal): 0.45 kW
EER (Nominal / Max / Min): 4.56 / 3.96 / 4.69
Indoor Air Flow: 11.7 m³/min
Moisture Removal Volume: 1.3 L/h
Operating Range: -10°C to +43°C
Heating
Nominal Capacity: 2.80 kW
Capacity Range: 0.75 – 4.00 kW
Input Power (Nominal): 0.62 kW
COP (Nominal / Max / Min): 4.52 / 4.26 / 4.69
Indoor Air Flow: 13.0 m³/min
Heating Capacity @ -7°C: 2.38 kW
Operating Range: -15°C to +24°C
Indoor Unit
Dimensions (H × W × D): 295 × 870 × 229 mm
Net Weight: 10 kg
Sound Pressure (Cool/Heat – Q-Lo to Hi): 19 – 37 dB(A)
Power Supply: 230V
Recommended Fuse: 16 A
Interconnect Cable: 4 × 1.5 mm²
Outdoor Unit
Dimensions (H × W × D): 542 × 780 × 289 mm
Net Weight: 25 kg
Sound Pressure (Cool/Heat – Hi): 45 / 46 dB(A)
Air Flow Rate (Cool/Heat): 27.4 / 26.7 m³/min
Elevation Difference (max): 15 m
Pipe Length Range: 3 – 15 m
Pipe Sizes: Liquid: 1/4″ (6.35 mm) | Gas: 3/8″ (9.52 mm)
Additional Refrigerant: 10 g/m beyond 7.5 m
