Description

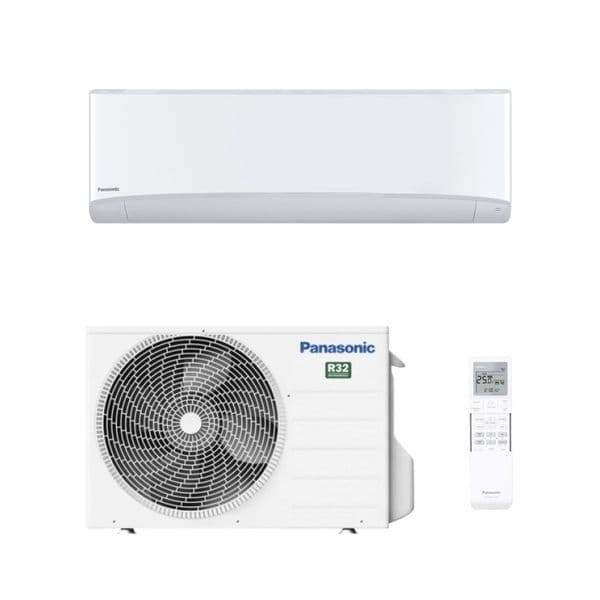

This Kit Includes:
1 x Panasonic CS-XZ25XKEW-H Matt White Indoor Unit (Wall-Mounted, nanoe™ X, R32, 2.5kW)
1 x Panasonic CU-Z25XKE Outdoor Inverter Heat Pump Unit (R32, A+++, 2.5kW, 220-240V~50Hz)
1 x Panasonic IR Remote Controller with backlit display (optional wired controller available)
15 m of 1/4″ & 3/8″ Insulated Copper Pipes
15 m of Interconnecting Cable
15 m of Pipe Insulation
1 x Pack of Cable Ties
1 x 60Kg Premium Wall Bracket for Outdoor Condensing Unit
Key Product Features
nanoe™ X hydroxyl radical air purification technology (Mark 2 Generator)
Integrated Wi-Fi with Panasonic Comfort Cloud App for remote control
Compatible with Google Assistant and Amazon Alexa
Quiet operation mode down to 19 dB(A) – ideal for bedrooms
Powerful mode and Mild Dry Cooling for optimal comfort
R32 refrigerant for improved performance and lower GWP
Stylish Graphite Grey design with compact profile
Real-time clock with dual on/off timer
Uniform airflow dispersion and vertical auto swing
Hot Start function (no cold air at the start of heating)
Automatic restart after power outage
15m max pipe length and 15m elevation difference
Self-diagnosis, easy access maintenance design
Optional Wired Weekly Timer with 42 programmable settings
Optional BMS/PLC control via PCB port (CZ-CAPRA1 compatible)
Technical Specifications
System Details
Kit Model: KIT-XZ25-XKE-H
Indoor Unit: CS-XZ25XKEW-H
Outdoor Unit: CU-Z25XKE
Refrigerant: R32
Energy Label (Cooling/Heating): A+++ / A+++
SEER / SCOP: 9.40 / 5.20
Annual Energy Consumption (Cooling/Heating): 93 / 646 kWh
nanoe™ X Generator: Mark 2
Wi-Fi: Built-in
Cooling
Nominal Capacity: 2.50 kW
Capacity Range: 0.85 – 3.50 kW
Input Power (Nominal): 0.51 kW
Operating Range: -10°C to +43°C
Heating
Nominal Capacity: 3.40 kW
Capacity Range: 0.80 – 4.80 kW
Capacity @ -7°C: 2.80 kW
Input Power (Nominal): 0.70 kW
Operating Range: -15°C to +24°C
Pdesign @ -10°C: 2.4 kW
Indoor Unit
Dimensions (H × W × D): 295 × 870 × 229 mm
Net Weight: 10 kg
Sound Pressure [Heat/Cool – Hi/Lo/Q-Lo]: 41 / 27 / 19 dB(A) (heat), 39 / 24 / 19 dB(A) (cool)
Outdoor Unit
Dimensions (H × W × D): 542 × 780 × 289 mm
Net Weight: 27 kg
Sound Pressure [Heat/Cool – Hi]: 47 / 46 dB(A)
Max Pipe Length / Elevation: 15 m / 15 m
Pipe Sizes: Liquid: 1/4″ (6.35 mm) | Gas: 3/8″ (9.52 mm)
Additional Refrigerant Charge: 10 g/m (over 7.5 m)
Optional Accessories
Product Code
Description
CZ-CAPRA1
RAC interface adaptor for BMS / P‑Link integration
PAW-SMSCONTROL
SMS Control Module (SIM card required)
CZ-RD514C
Wired Remote Controller
