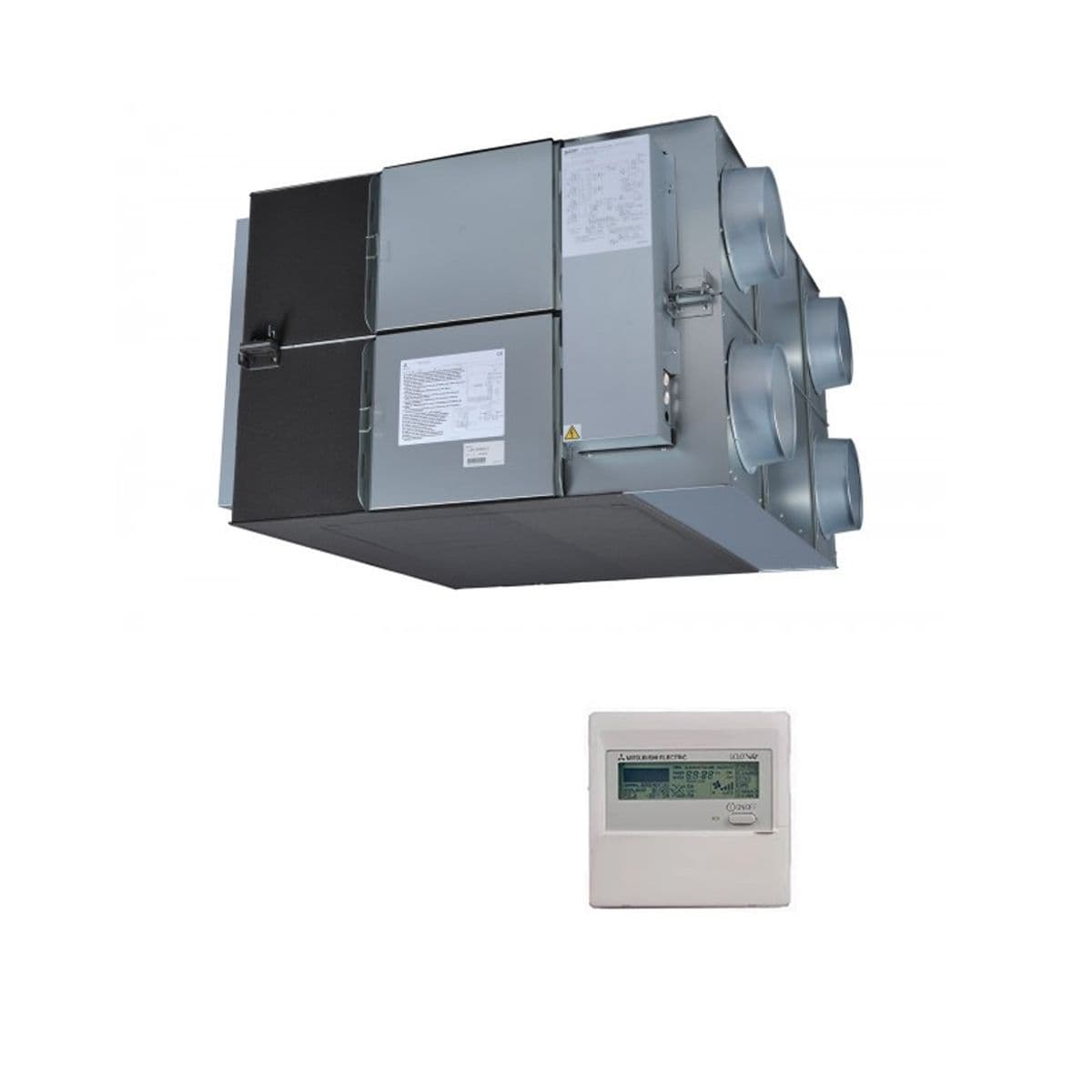

Mitsubishi Electric LGH160RVX3-E Heat Recovery Ventilation System

Description

Ideal for offices, educational buildings, and low-humidity commercial spaces

Technical Data:
High-capacity airflow rate of 1,600 m³/h @ 100 Pa ESP
4 × 250 mm duct connections (may require transition pieces due to spacing)
Up to 80% heat recovery efficiency via total heat exchange (sensible + latent)
Lossnay paper core enables energy-efficient ventilation
Compliant with Part L of building regulations
100% summer bypass for free cooling operation
Lightweight, compact design suitable for ceiling or vertical installation
Compatible with Mitsubishi Electric CO₂ sensors, Wi-Fi modules, digital controllers, and F7 filters
Ready for integration with Mr Slim and City Multi systems
Optional 0–10V control input, 12V signals, and M-Net connectivity
Filter access and spigot orientation designed for flexible duct routing

Controllability & Integration
Control Options
Volt-free contact, dipswitch settings, 0–10V DC input, 12V signal, optional controller, Wi-Fi, M-Net
System Compatibility
Mitsubishi Mr Slim and City Multi (integrated control possible)
Sensor Integration
Optional CO₂ sensors, external environmental sensors

These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
