Mitsubishi Heavy Industries FDE100VH + FDC100VSA-W

Description

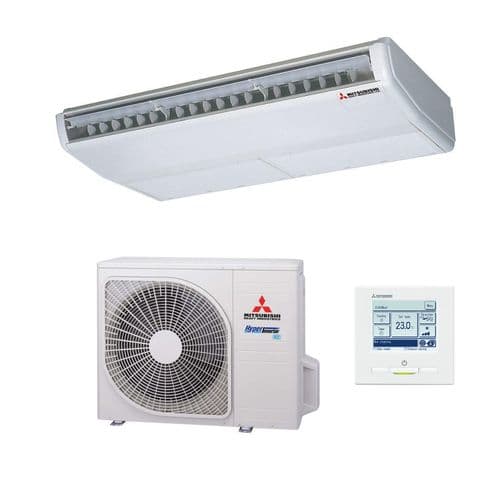

This Kit Includes:
1 x Mitsubishi Heavy Industries FDE100VH Under Ceiling Indoor Unit (10kW / 34000Btu, R32)
1 x Mitsubishi Heavy Industries FDC100VSA-W Outdoor Micro Inverter Unit (10kW, R32, A+, 3 Phase)
1 x Mitsubishi Heavy Industries RC-EX3A Eco Touch Wired Remote Controller

Key Product Features:
Slimline, space-saving under-ceiling design
R32 refrigerant with high energy efficiency
7-Day 24HR programmable timer with 2 on/off settings daily
Full fan speed, mode, airflow and temperature control via hard-wired controller
Auto-restart after power interruption
Quiet operation with improved anti-smudge discharge design
Long pipe runs and high COP rating
Infrared remote option and advanced control compatibility
Ideal for commercial and high-traffic environments

Technical Specifications:
Indoor Unit – FDE100VH
Dimensions (H × W × D): 250 × 1620 × 690 mm
Net Weight: 43 kg
Airflow (H/M/L): 26 / 21 / 16.5 m³/min
Sound Pressure (H/M/L): 43 / 38 / 34 dB(A)
Outdoor Unit – FDC100VSA-W
Dimensions (H × W × D): 845 × 970 × 370 mm
Net Weight: 78 kg
Sound Pressure (Cooling / Heating): 54 / 65 dB(A)
Performance
UK Cooling Capacity: 9.26 kW
UK Sensible Cooling: 7.83 kW
Cooling Range (Nominal): 4.0 – 11.2 kW
Heating Range (Nominal): 4.0 – 12.5 kW
SEER / EER: 6.67 / 3.51 (A++)
SCOP / COP: 4.31 / 4.41 (A+)
Electrical
Power Supply: 3 Phase, 380 – 415V, 50Hz
MCB Rating: 20A per phase
Max Running Current: 15 A
Start Current: 5 A
Interconnect Cable: 3+E (1.5 mm²)
Refrigerant & Pipework
Refrigerant Type: R32
Precharged Amount: 3.3 kg (2.228 TCO₂Eq)
Piping Length (Max): 50 m
Vertical Height Difference: 50 m (above) / 15 m (below)
Pipe Size (Liquid / Suction): 3/8 in / 5/8 in
Additional Refrigerant Charge: 54 g/m (after 30 m)

Optional Accessories for FDE Under Ceiling Units:
Product No.
Description
RCN-E-E3
IR Remote Control & Receiver Kit for FDE**VG/F
LB-E
Motion Sensor (Compatible with RC-EX3A)
RCE5
Standard Wired Controller
RCEX3A
Eco Touch Controller (Included)
RCH-E3
Simplified Controller
PCZ006A043
6 Wire Adaptor
INMBSM-HI001R000
Modbus Interface – 1 Indoor Unit
INKNXM-HI001R000
KNX Interface – 1 Indoor Unit
SC-ADNA-E
Superlink Adaptor
IHWFIM-HI001R000
Intesis Home WiFi Interface (Hard Wired)
AZA16WSCMHI
AirZone Aido WiFi Module
SC-THB-E3
Remote Sensor (8m)
SSA42A024
Condensate Drain Elbow (1 required)
SSA947089
Condensate Drain Grommets (4 required)
