Mitsubishi Heavy Industries Air Conditioning FDT140VH + FDC140VSX-W

Description

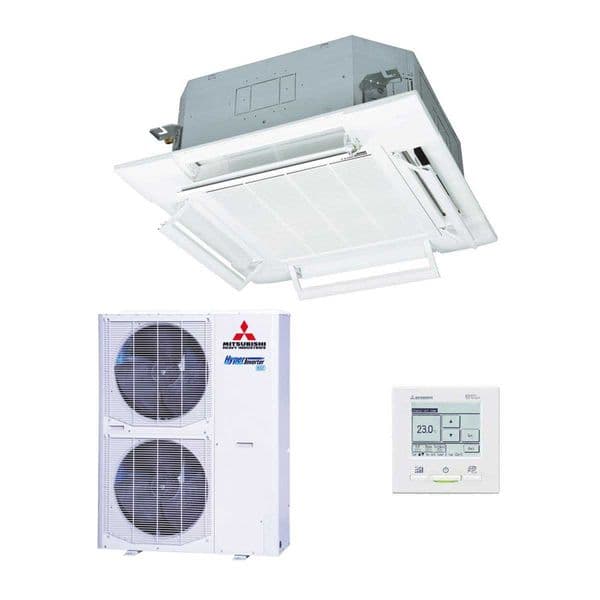

This Kit Includes:
1 x Mitsubishi Heavy Industries FDT140VH Cassette Indoor Unit (14kW, R32)
1 x Mitsubishi Heavy Industries FDC140VSX-W Hyper Inverter Outdoor Unit (14kW, R32, 3 Phase, 380–415V~50Hz)
1 x Mitsubishi Heavy Industries RC-EX3A Eco Touch Wired Remote Controller (2-wire PAC)
1 x Fascia Panel – Part Number: T-PSA-5BW-E

Key Product Features
Full-function RC-EX3A touch screen controller with over 90 configurable settings
7-Day / 24-Hour Programmable Timer with dual ON/OFF schedules
External BMS / Timer control for group operation (up to 16 units)
Compact installation – 298 mm depth
Integrated condensate lift pump
Advanced heat exchanger with slit-fins and inner grooved tubing
Anti-smudge louver design to reduce ceiling discoloration
R32 refrigerant for reduced environmental impact
Auto-restart function after power interruption
Ultra-quiet operation
Long piping capability – up to 100 m total / 50 m vertical
High seasonal efficiency (SEER / SCOP rated)

Technical Specifications
Indoor Unit – FDT140VH
Panel Part Number: T-PSA-5BW-E
Controller: RC-EX3A
Dimensions (H × W × D): 298 × 840 × 840 mm
Net Weight (Incl. Panel): 30 kg
Airflow (H/M/L) – Cooling: 29 / 26 / 19 m³/min
Airflow (H/M/L) – Heating: 29 / 26 / 19 m³/min
Sound Pressure – Cooling: 42 / 39 / 32 dB(A)
Sound Pressure – Heating: 41 / 38 / 31 dB(A)
Outdoor Unit – FDC140VSX-W
Dimensions (H × W × D): 1300 × 970 × 370 mm
Net Weight: 99 kg
Sound Pressure – Cooling/Heating: 54 / 54 dB(A)
Performance
UK Cooling Capacity: 13.21 kW
UK Sensible Cooling: 9.45 kW
Cooling Range (Nominal): 3.5 – 16.0 kW
Heating Range (Nominal): 2.7 – 20.0 kW
SEER / EER / Label: 7.20 / 3.62 / N/A
SCOP / COP / Label: 4.35 / 3.81 / A+
Electrical
Power Supply: 3 Phase, 380 – 415V, 50Hz
MCB Rating: 20A per phase
Max Running Current: 14 A
Start Current: 5 A
Interconnect Cable: 3+E (1.5 mm²)
Refrigerant & Pipework
Refrigerant Type: R32
Precharged Amount: 4 kg (2.700 TCO₂Eq)
Pipe Size (Liquid / Suction): 3/8 in / 5/8 in
Precharged Pipe Length: Up to 30 m
Max Piping Length: 100 m
Vertical Height Difference (Max): 50 m (above) / 15 m (below)
Additional Refrigerant Charge: 54 g/m
