Description
Technical Specification:

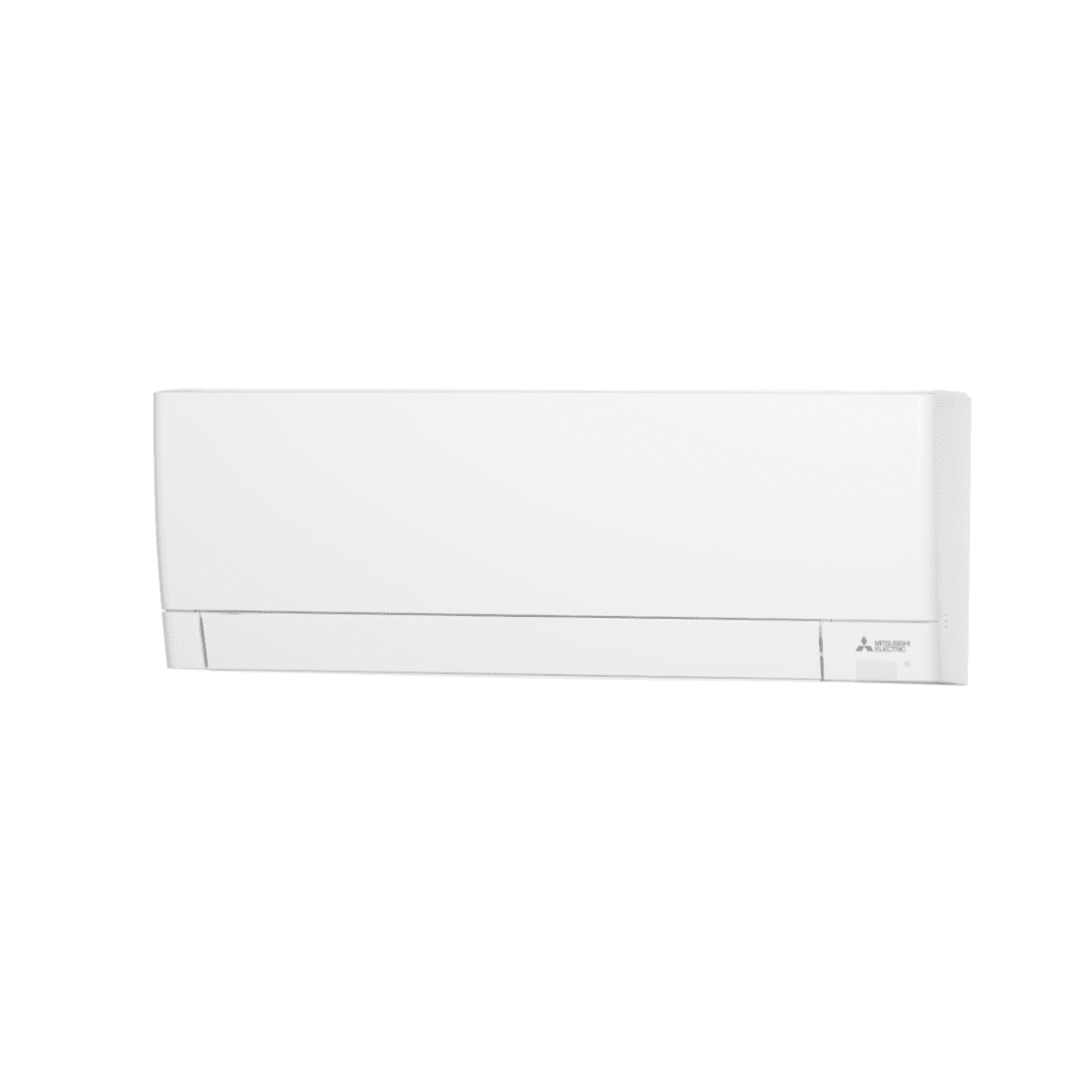

| MSZ-AP / MSZ-AY INDOOR UNITS | MSZ-AY42VGK | |
| CAPACITY (kW) | Heating (nominal) | 5.2 (1.3-6.0) |
| Cooling (nominal) | 4.2 (0.9-4.5) | |
| Heating (UK) | 4.45 (1.1-4.9) | |
| Cooling (UK) | 4.17 (0.9-4.5) | |
| SHF (nominal) | 0.77 | |
| COP / EER (nominal) | 3.74 / 3.23 | |
| SCOP / SEER (BS EN14825) | 4.70 / 7.90 | |
| ErP ENERGY EFFICIENCY CLASS Heating/Cooling | A++ / A++ | |
| AIRFLOW (l/s) | Heating – SLo-Lo-Mid-Hi-SHi | 73-90-116-143-215 |
| Cooling – SLo-Lo-Mid-Hi-SHi | 75-95-116-140-175 | |
| PIPE SIZE mm (in) | Gas | 9.52 (3/8”) |
| Liquid | 6.35 (1/4”) | |
| SOUND PRESSURE LEVEL (dBA) | Heating – SLo-Lo-Mid-Hi-SHi | 21-29-35-40-45 |
| Cooling – SLo-Lo-Mid-Hi-SHi | 21-29-34-38-42 | |
| SOUND POWER LEVEL (dBA) | 57 | |
| DIMENSIONS (mm) Width x Depth x Height | 798 x 245 x 299 | |
| WEIGHT (kg) | 10.5 | |
| ELECTRICAL SUPPLY | Fed by Outdoor Unit | |
| FUSE RATING (BS88) – HRC (A) | 6 | |
| INTERCONNECTING CABLE No. CORES | 4 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
