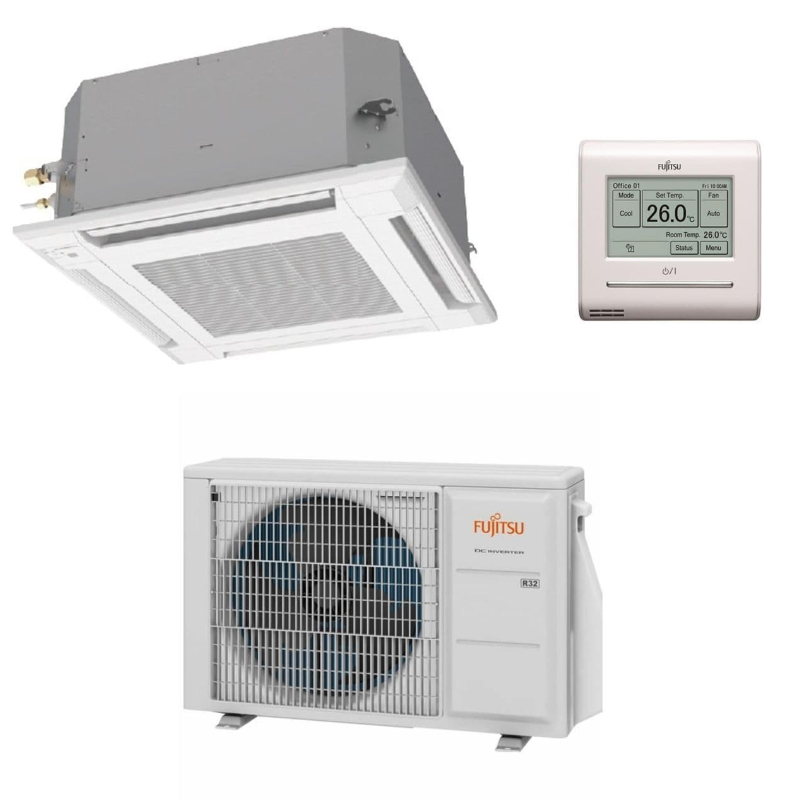

Fujitsu Air Conditioning AUXG14KVLA / AOEG14KATA Compact Cassette

£1,751.00

Fujitsu Air Conditioning AUXG14KVLA Compact Cassette Heat Pump R32 A++ 4.3kW / 16000Btu

Perfect for small to medium spaces where discreet, ceiling-integrated air conditioning is required, the AUXG14KVLA compact cassette unit is designed to sit flush within a standard 600 × 600 mm ceiling grid, making it ideal for offices, retail spaces, and residential rooms. The unit delivers reliable heating and cooling performance while maintaining impressively low noise levels, with a minimum sound pressure of just 27 dB(A), ensuring a comfortable and quiet environment. Its compact, low-profile design at just 245 mm in height allows for flexible installation in shallow ceiling voids, offering a clean and unobtrusive finish. With 4-way air discharge, it provides even air distribution across the room, seamlessly integrating into the space and making it suitable for both residential and light commercial applications.

The Fujitsu air conditioning condensing R32 inverter outdoor unit (AOEG14KATA) is engineered for efficiency and reliability, featuring advanced inverter technology that adjusts compressor speed to match real-time demand. This ensures optimal energy usage, achieving an excellent SEER of 6.1 and SCOP of 4.0, reducing consumption while maintaining consistent indoor comfort. The unit is compact and robust, capable of operating in a wide range of outdoor temperatures — cooling in conditions as low as -10°C and heating down to -15°C. By minimising temperature fluctuations and maintaining a stable indoor climate, it enhances comfort while keeping running costs low, making it an excellent choice for energy-conscious installations.

SKU: fujitsu-auxg14kvla-aoeg14kata-compact-cassette Category: Tags: , , , Product ID: 32613

Description

Key Product Features:

  • Compact 4-way cassette – fits standard 600 × 600 mm ceiling grid with no modification
  • High energy efficiency – A++ or A+ cooling / A+ or A heating energy class
  • Wide operating range – cooling to -10°C and heating down to -15°C outdoor temperature
  • Economy mode – thermostat adjusts automatically to avoid unnecessary running
  • Auto changeover – switches between heating and cooling based on room temperature
  • 10°C heating mode – prevents room temperature dropping below 10°C when unoccupied
  • Weekly timer – individual ON/OFF schedules settable for each day
  • Optional Wi-Fi control – compatible with optional WLAN adapter
  • Flexible installation – suitable for mono-split and multi-split applications
  • R32 refrigerant – low GWP of 675
  • Quiet operation – minimum indoor sound pressure from 27 dB(A)

 Specification:

AUXG14KVLA / AOEG14KATA

General
Indoor Unit AUXG14KVLA
Outdoor Unit AOEG14KATA
Power Supply Single phase, ~230V, 50Hz
Capacity
Cooling (Rated) kW 4.3
Cooling (Min–Max) kW 0.9–4.5
Heating (Rated) kW 5.0
Heating (Min–Max) kW 0.9–5.3
Performance
Input Power (Cooling/Heating) kW 1.37 / 1.42
EER W/W 3.14
COP W/W 3.52
Pdesign (Cooling/Heating at -10°C) kW 4.3 / 3.2
SEER W/W 6.1
SCOP W/W 4.0
Energy
Energy Class (Cooling) A++
Energy Class (Heating) A+
Annual Energy Consumption (Cooling) kWh/a 247
Annual Energy Consumption (Heating) kWh/a 1,120
Sound
Sound Pressure – Indoor Cooling (H/M/L/Q) dB(A) 38/34/30/27
Sound Pressure – Indoor Heating (H/M/L/Q) dB(A) 43/38/34/30
Sound Pressure – Outdoor (Cooling/Heating) dB(A) 50/51
Sound Power – Indoor (Cooling/Heating) dB(A) 50/55
Sound Power – Outdoor (Cooling/Heating) dB(A) 63/63
Airflow
Indoor/Outdoor Airflow – Cooling (High) m³/h 680 / 1,670
Indoor/Outdoor Airflow – Heating (High) m³/h 800 / 1,580
Dimensions & Weight
Indoor Unit (H×W×D) mm 245 × 570 × 570
Outdoor Unit (H×W×D) mm 542 × 799 × 290
Weight (Indoor/Outdoor) kg 15 / 32
Refrigerant & Piping
Max Operating Current (Cooling/Heating) A 9.2 / 9.2
Connection Pipe Diameter (Liquid/Gas) mm 6.35 / 9.52
Max Pipe Length (Pre-Charge) m 20 (15)
Operating Range – Cooling °CDB -10 to 46
Operating Range – Heating °CDB -15 to 24
Refrigerant (GWP) R32 (675)
Cassette Grille
Grille Model UTG-UFYF-W
Grille Dimensions (H×W×D) mm 49 × 620 × 620
Grille Weight kg 2.3
