Description
Key Product Features:
- High energy efficiency – A++ cooling / A+ heating energy class across both models
- Strong SEER ratings – up to 7.20 for reduced running costs year-round
- Whisper-quiet operation – minimum indoor sound pressure level as low as 33 dB(A)
- Wide operating range – cooling down to -10°C and heating down to -15°C outdoor temperature
- R32 refrigerant – low global warming potential (GWP 675) for reduced environmental impact
- 1-phase power supply – single phase ~230V, 50Hz for straightforward installation
- Wireless remote controller included as standard
- High capacity range – 5.2kW to 7.1kW cooling for larger residential and commercial spaces
- Extended pipe runs – up to 25m or 30m depending on model
- Compact indoor unit – 293 × 790 × 249mm suits a wide variety of room installations
- Suitable for larger residential rooms, open-plan areas, and light commercial applications

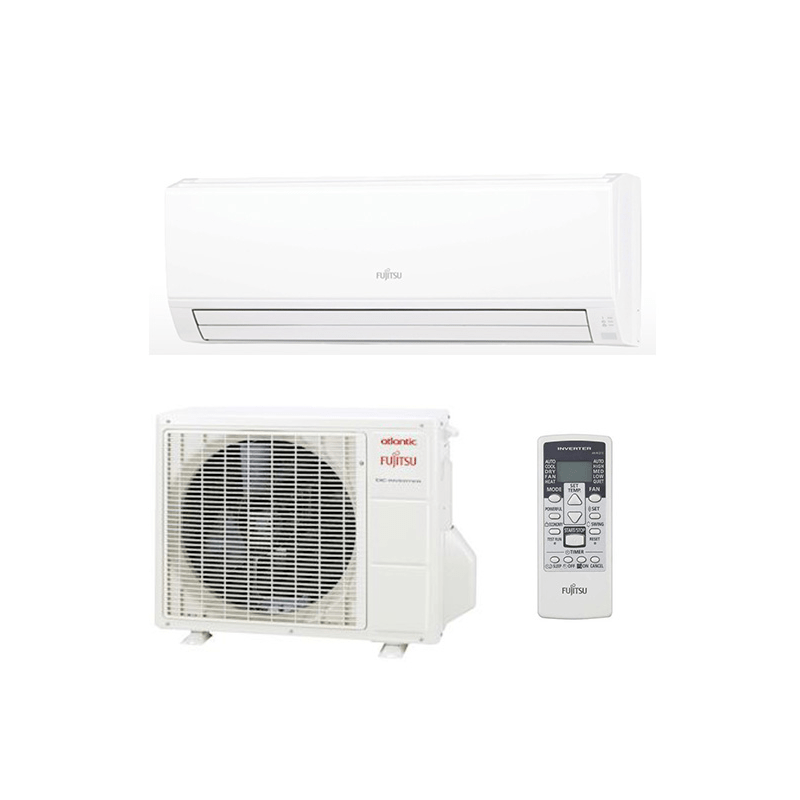

ASEG18KLCA / AOEG18KLCA
| General | ||
| Indoor Unit | ASEG18KLCA | |
| Outdoor Unit | AOEG18KLCA | |
| Power Supply | Single phase, ~230V, 50Hz | |
| Description | Wall Mounted Heat Pump R32 | |
| Controller | Wireless RC (included) | |
| Capacity | ||
| Cooling (Rated) | kW | 5.2 |
| Cooling (Min–Max) | kW | 0.9–5.5 |
| Heating (Rated) | kW | 6.3 |
| Heating (Min–Max) | kW | 0.6–7.6 |
| Performance | ||
| Input Power (Cooling/Heating) | kW | 1.685 / 1.80 |
| EER | W/W | 3.09 |
| COP | W/W | 3.50 |
| Pdesign (Cooling/Heating at -10°C) | kW | 5.2 / 4.8 |
| SEER | W/W | 7.20 |
| SCOP | W/W | 4.30 |
| Energy | ||
| Energy Class (Cooling) | A++ | |
| Energy Class (Heating) | A+ | |
| Annual Energy Consumption (Cooling) | kWh/a | 253 |
| Annual Energy Consumption (Heating) | kWh/a | 1,563 |
| Sound | ||
| Sound Pressure – Indoor Cooling (H/M/L/Q) | dB(A) | 47/44/40/35 |
| Sound Pressure – Indoor Heating (H/M/L/Q) | dB(A) | 50/45/41/37 |
| Sound Pressure – Outdoor (Cooling/Heating) | dB(A) | 50/56 |
| Sound Power – Indoor (Cooling/Heating) | dB(A) | 60/65 |
| Sound Power – Outdoor (Cooling/Heating) | dB(A) | 61/66 |
| Airflow | ||
| Indoor/Outdoor Airflow – Cooling (High) | m³/h | 865 / 1,830 |
| Indoor/Outdoor Airflow – Heating (High) | m³/h | 995 / 2,265 |
| Dimensions & Weight | ||
| Indoor Unit (H×W×D) | mm | 293 × 790 × 249 |
| Outdoor Unit (H×W×D) | mm | 542 × 799 × 290 |
| Weight (Indoor/Outdoor) | kg | 9.5 / 33 |
| Refrigerant & Piping | ||
| Max Operating Current (Cooling/Heating) | A | 9.5 / 13.5 |
| Refrigerant (GWP) | R32 (675) | |
| Connection Pipe Diameter (Liquid/Gas) | mm | 6.35 / 9.52 |
| Max Pipe Length (Pre-Charge) | m | 25 (15) |
| Max Height Difference | m | 20 |
| Operating Range – Cooling | °CDB | -10 to 46 |
| Operating Range – Heating | °CDB | -15 to 24 |
| Moisture Removal | l/h | 1.9 |
| Pricing | ||
| Indoor Unit (ASEG18KLCA) | £298.00 | |
| Outdoor Unit (AOEG18KLCA) | £876.00 | |
| System Price | £1,174.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
