Description
Key Product Features:
- Medium/high static ducted design for fully concealed ceiling void installation
- Static pressure range of 30–200 Pa for flexible duct design across a variety of layouts
- Energy class A++ cooling and A+ heating performance across the range
- Ultra-quiet operation from 20 dB(A) in quiet fan mode
- Compact indoor unit at 300mm height for installation in shallow ceiling voids
- R32 refrigerant with low GWP of 675
- Extended pipe runs up to 50m (30m pre-charge) on larger models
- Wide capacity range from 3.5kW to 8.5kW to suit residential and commercial applications
- Single-phase 230V power supply for standard installations

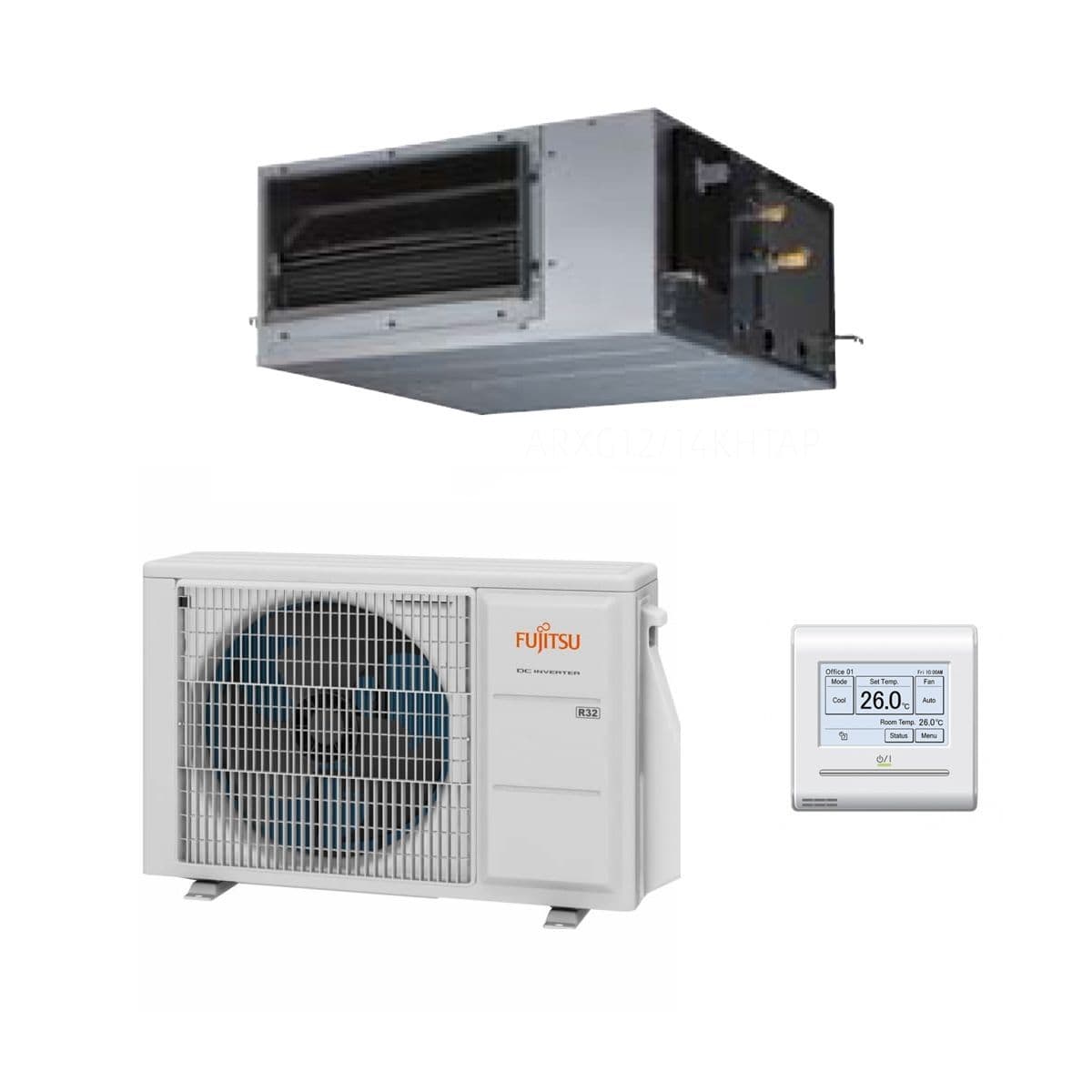

ARXG18KHTAP / AOEG18KBTB
| General | ||
| Indoor Unit | ARXG18KHTAP | |
| Outdoor Unit | AOEG18KBTB | |
| Power Supply | Single phase, ~230 V, 50 Hz | |
| Description | Medium / High Static Ducted | |
| Capacity | ||
| Cooling (Rated) | kW | 5.2 |
| Cooling (Min–Max) | kW | 0.9–5.9 |
| Heating (Rated) | kW | 6.0 |
| Heating (Min–Max) | kW | 0.9–7.5 |
| Performance | ||
| Input Power (Cooling/Heating) | kW | 1.36/1.56 |
| EER | W/W | 3.82 |
| COP | W/W | 3.85 |
| SEER | W/W | 6.50 |
| SCOP | W/W | 4.10 |
| Static Pressure Range (Standard) | Pa | 30–200 (35) |
| Energy | ||
| Energy Class (Cooling) | A++ | |
| Energy Class (Heating) | A+ | |
| Annual Energy Consumption (Cooling) | kWh/a | 280 |
| Annual Energy Consumption (Heating) | kWh/a | 1,501 |
| Sound | ||
| Sound Pressure – Indoor Cooling (H/M/L/Q) | dB(A) | 28/25/22/20 |
| Sound Pressure – Indoor Heating (H/M/L/Q) | dB(A) | 28/25/22/20 |
| Sound Pressure – Outdoor (Cooling/Heating) | dB(A) | 50/50 |
| Sound Power – Indoor (Cooling/Heating) | dB(A) | 54/54 |
| Sound Power – Outdoor (Cooling/Heating) | dB(A) | 62/62 |
| Airflow | ||
| Indoor/Outdoor Airflow – Cooling (High) | m³/h | 1,050/2,160 |
| Indoor/Outdoor Airflow – Heating (High) | m³/h | 1,050/1,830 |
| Dimensions & Weight | ||
| Indoor Unit (H×W×D) | mm | 300 × 1,000 × 700 |
| Outdoor Unit (H×W×D) | mm | 632 × 799 × 290 |
| Weight – Indoor | kg | 35 |
| Weight – Outdoor | kg | 36 |
| Refrigerant & Piping | ||
| Max Operating Current (Cooling/Heating) | A | 12.1/12.1 |
| Refrigerant (GWP) | R32 (675) | |
| Refrigerant Charge | kg (CO₂eq-t) | 1.02 (0.689) |
| Connection Pipe Diameter (Liquid/Gas) | mm | 6.35/12.70 |
| Drain Hose Diameter (I.D./O.D.) | mm | 25/32 |
| Max Pipe Length (Pre-Charge) | m | 30 (20) |
| Max Height Difference | m | 20 |
| Operating Range – Cooling | °CDB | –15 to +46 |
| Operating Range – Heating | °CDB | –15 to +24 |
| Moisture Removal | l/h | 1.2 |
| Pricing | ||
| Indoor Unit (ARXG18KHTAP) | £914.00 | |
| Outdoor Unit (AOEG18KBTB) | £1,143.00 | |
| System Price | £2,334.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
