Daikin FBA100A + AZAS100MY1 Active Concealed Ducted Inverter Heat Pump | 10kW (34,000Btu) | R32 | 3 Phase 380–415V

Description

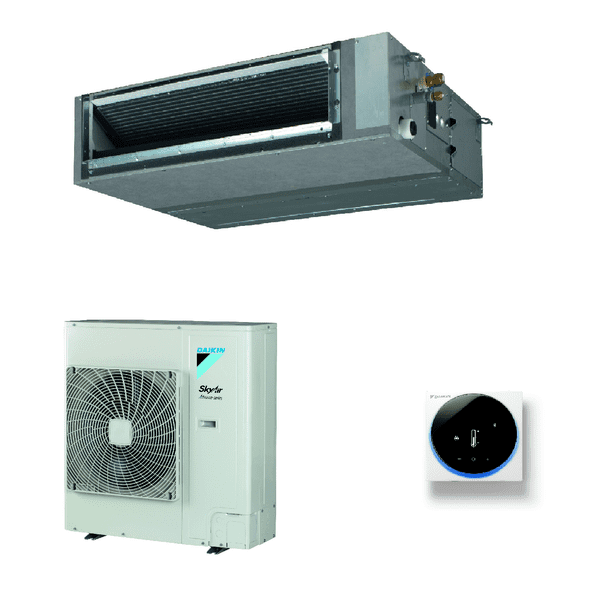

This Kit Includes
1 x Daikin FBA100A Concealed Ducted Indoor Unit (Sky Air) – 10kW – R32 / R410A compatible
1 x Daikin AZAS100MY1 Active Outdoor Unit – 10kW – R32 – 3 Phase 380–415V ~50Hz
1 x Daikin BRC1H52W Madoka Wired Touch Controller – White

Key Features
Concealed installation: only suction and discharge grilles visible
Slim indoor unit: 245mm height (approx. 300mm built-in height) for narrow ceiling voids
Medium ESP up to 150Pa for flexible duct design (varying lengths)
ESP adjustment via wired controller to optimise supply air volume
Low operating sound: indoor sound level down to 25 dBA (as stated)
Flexible suction: rear or bottom intake; free return or connect to optional suction grilles
Built-in drain pump with 625mm lift for faster, more reliable condensate removal
Optional fresh air intake
Multi-zoning option: serve multiple individually controlled zones from one indoor unit (via kit)
DC inverter swing compressor for quiet operation and stable temperatures
R32 Bluevolution benefits: reduced environmental impact and improved efficiency vs R410A (as stated)

Technical Specifications
Indoor Unit – FBA100A
Casing: Galvanised steel (not painted)
Dimensions (H × W × D): 245 × 1400 × 800 mm
Weight: 46 kg
Drain lift: 625 mm
Airflow (Cooling / Heating):
High / Med / Low: 29 / 26 / 23 m³/min
External Static Pressure (ESP):
High: 150 Pa | Nominal: 40 Pa
Piping connections:
Drain: VP20 (I.D. 20 / O.D. 26)
Liquid: 9.52 mm | Gas: 15.90 mm
Sound levels (Sound pressure):
Cooling: High 34 dBA | Med 32 dBA | Low 30 dBA
Heating: High 36 dBA | Med 33 dBA | Low 30 dBA
Sound power (Cooling): 58 dBA
Power supply: 1~ 220–240V, 50/60Hz
Outdoor Unit – AZAS100MY1
Compressor: Hermetically sealed swing compressor
Dimensions (H × W × D): 990 × 940 × 320 mm
Weight: 70 kg
Operating range:
Cooling: -5 to 46°C DB
Heating: -15 to 15.5°C WB
Piping length:
Outdoor ↔ Indoor max: 30 m (equivalent system length up to 50 m)
Chargeless length: 30 m
Level difference: Max 30 m
Refrigerant: R32, charge 2.60 kg, GWP 675
Power supply: 3~ 380–415V, 50Hz
Outdoor sound levels:
Sound power (Cooling): 70 dBA
Sound pressure: Cooling (Nom.) 53 dBA | Heating (Nom.) 57 dBA
Maximum fuse amps (MFA): 16 A
Piping connections: Liquid 9.52 mm | Gas 15.9 mm
Additional refrigerant: “See installation manual” (kg/m)

Accessories (Optional)
Product Code
Description
BRP069C81
Wi-Fi adapter for Daikin Onecta App
BRC1H52W
Madoka wired touch controller – White (included)
BRC1H52S / BRC1H52K
Madoka wired touch controller – Silver / Black
BRC4C65
Wireless remote controller
K.CGM
Condensing unit guard (1150 × 1150 × 650)
K.CWB90-2
Wall bracket (90kg, 500mm support arm)
K.DT1
Condensate drip tray (for K.CWB90-2)
K.RSS / RS-SE
Wireless room temp sensor + receiver / service & config tool
KRCS01-4
Remote room mounted temperature sensor
KLIC-DI
KNX Interface for Sky Air / VRV
KRP4A53 + UK.FB2
Unit/group adaptor PCB (ON/OFF, status, temp setting)
RTD-10 + UK.FB2
Enhanced function PCB (duty rotation, lead/lag, heating interlock)
RTD-20 + UK.FB2
Energy control PCB
RTD-NET + UK.FB2
Modbus interface PCB
UK.RC2 / UK.RC3 / UK.RC3A
Return chamber options (various spigot layouts)
UK.SF2 / UK.SF3 / UK.SF3A
Supply flange options (various spigot layouts)
