Description

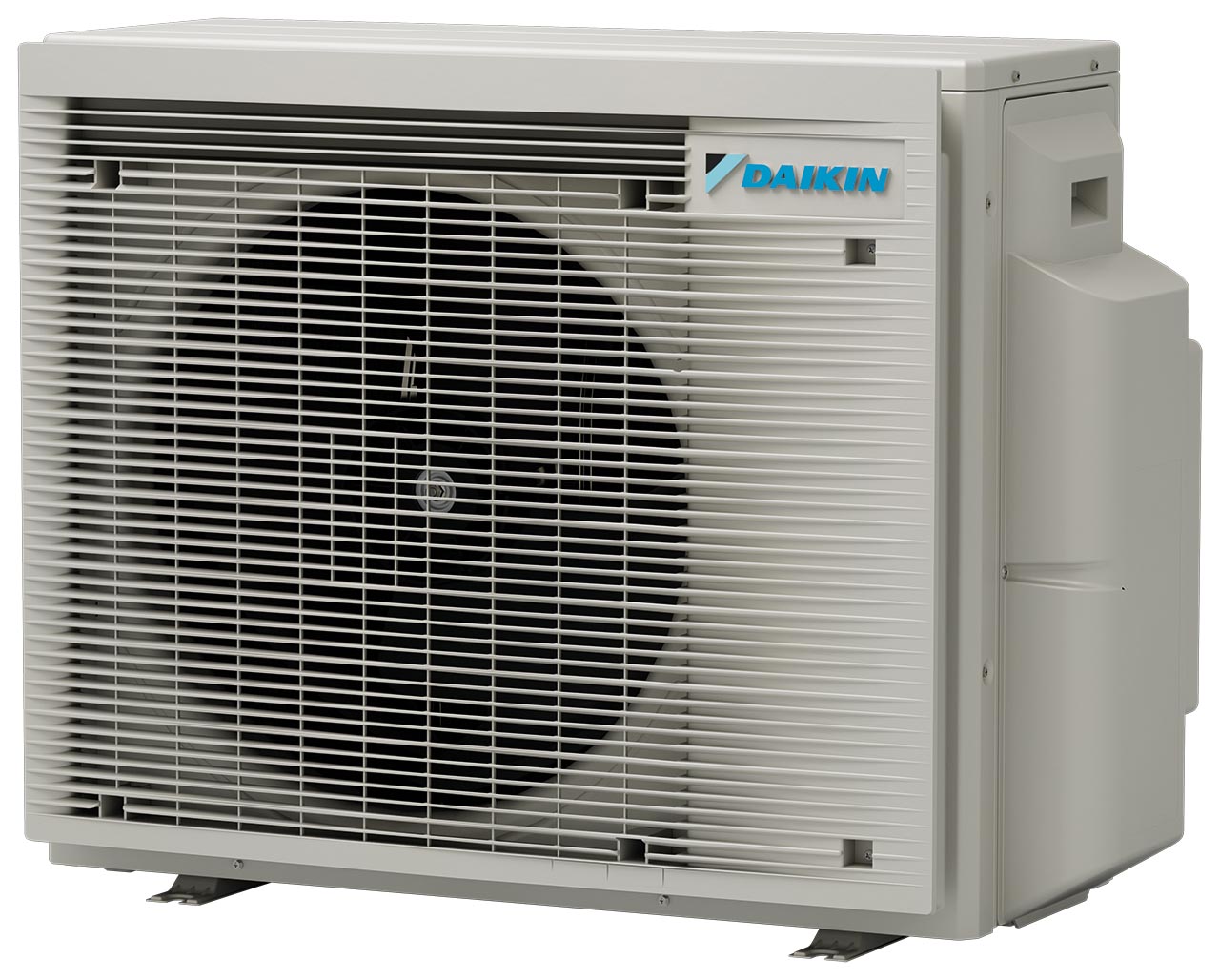

OUTDOOR UNIT: 4MWXM52A9

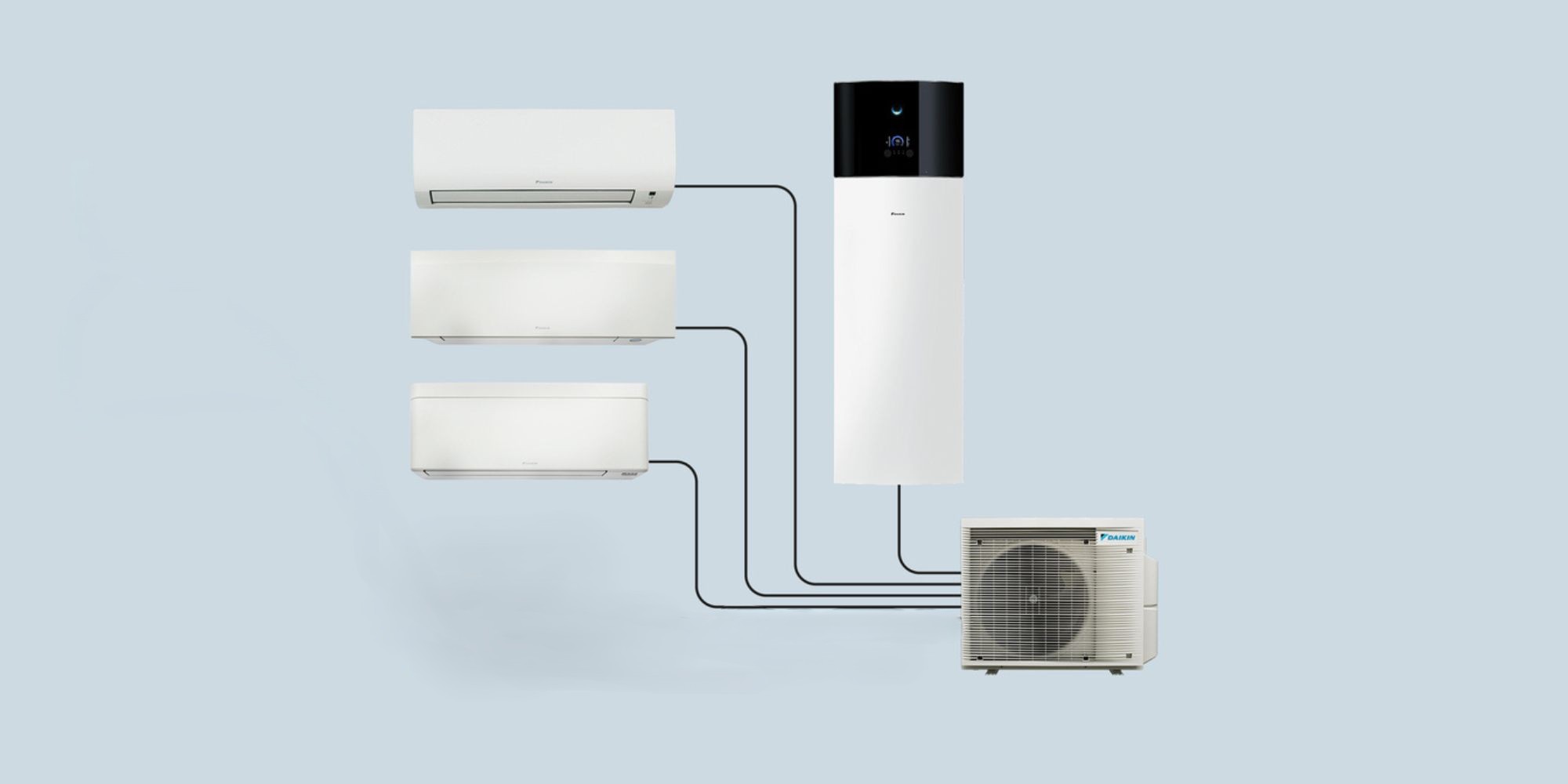

- Multi + combines up to 3 indoor units and 1 tank
- New design outlook for outdoor unit
- Seasonal efficiency values up to A+++ in cooling and A++ in heating
- Wide choice of connectable indoor units
- Multi application: combines up to 3 indoor units
| Compressor | Model | 2Y147BKBX1P#C | ||||
| Type | Hermetically sealed swing compressor | |||||
| Casing | Colour | Ivory white | ||||
| Dimensions | Unit | Depth | 401 | mm | ||
| Height | 734 | mm | ||||
| Width | 974 | mm | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB | |
| Max. | 46 | °CDB | ||||
| Heating | Ambient | Min. -15 | ||||
| Max. 24 | ||||||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 20m) | kg/m | |||
| Level difference | IU | OU | Max. | 15.0 | m | |
| IU | Max. | 7.5 | m | |||
| Total piping length | System | Actual | 50 | m | ||
| Power supply | Frequency | 50 | Hz | |||
| Phase | 1~ | ph | ||||
| Voltage | 220-240 | V | ||||
| Refrigerant | Charge | 2.2 | kg | |||
| Type | R-32 | |||||
| Sound pressure level | Cooling | Nom. | 46 | dBA | ||
| Weight | Unit | 60 | kg | |||

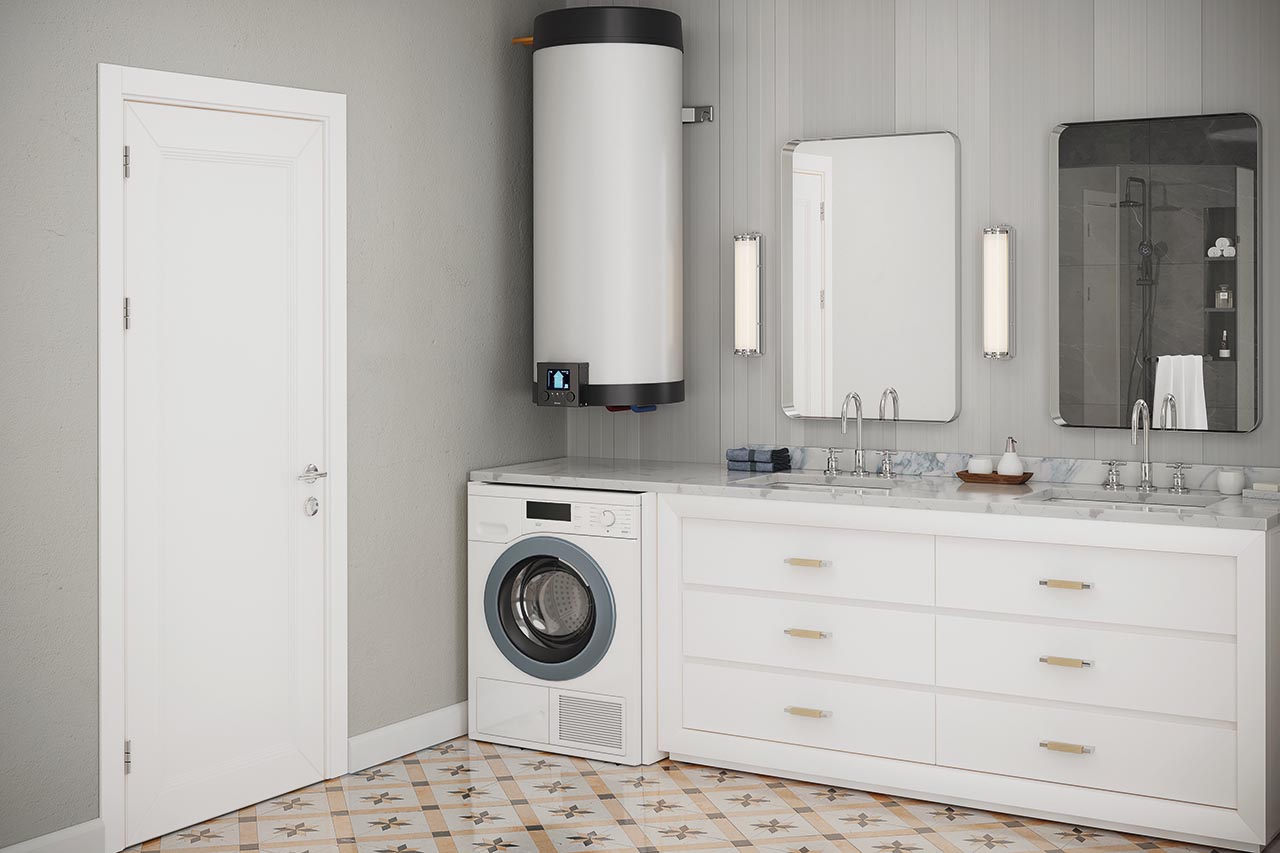

Specifications for EKHWET90BV3
| EKHWET90BAV3 | |||||
|---|---|---|---|---|---|
| Mounting | Wall | ||||
| Casing | Colour | White + Black | White + Black | ||
| Material | Sheet metal, Acrylonitrile Butadiene Styrene | Sheet metal, Acrylonitrile Butadiene Styrene | |||
| Dimensions | Unit | Tank | mm | 1032 | 1283 |
| mm | 510 | 510 | |||
| mm | 570 | 570 | |||
| Weight | Unit | kg | 43 | 47 | |
| Tank | Water volume | 89 | 118 | ||
| Material | Enamel coated steel acc. DIN4753TL2 | Enamel coated steel acc. DIN4753TL2 | |||
| Maximum water temperature | 75.0 | 75.0 | |||
| Energy efficiency class | B | C | |||
| Heat exchanger | Domestic hot water | 1 | 1 | ||
| Aluminium | Aluminium | ||||
| bar | 42 | 42 | |||
| Booster heater | Capacity | 1.2 | 1.2 | ||
| Energy Efficiency Range | A+ ~ F | ||||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
