Description
OUTDOOR UNIT: 4MWXM52A9

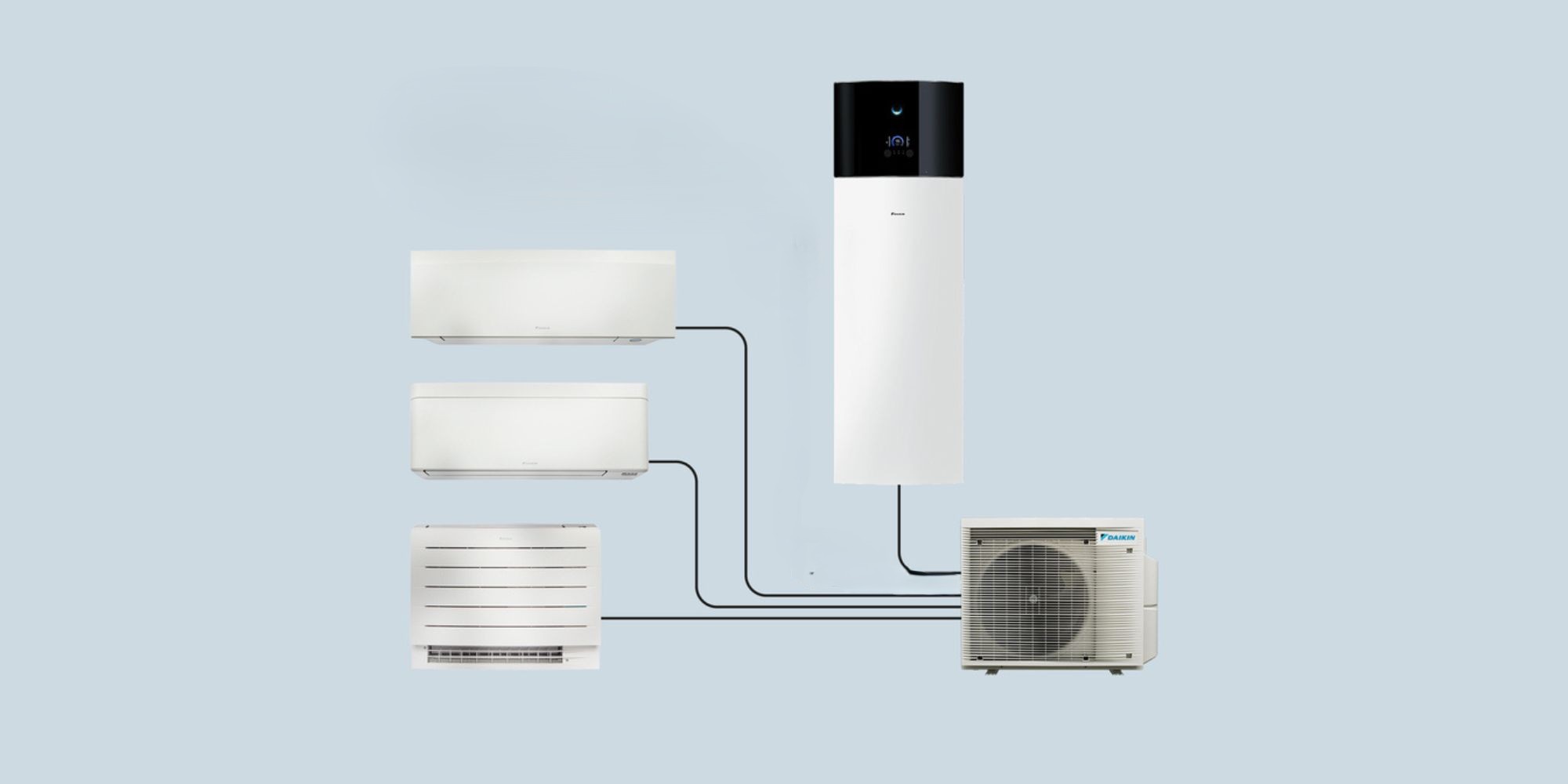

- Multi + combines up to 3 indoor units and 1 tank
- New design outlook for outdoor unit
- Seasonal efficiency values up to A+++ in cooling and A++ in heating
- Wide choice of connectable indoor units
- Multi application: combines up to 3 indoor units
| Compressor | Model | 2Y147BKBX1P#C | ||||
| Type | Hermetically sealed swing compressor | |||||
| Casing | Colour | Ivory white | ||||
| Dimensions | Unit | Depth | 401 | mm | ||
| Height | 734 | mm | ||||
| Width | 974 | mm | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB | |
| Max. | 46 | °CDB | ||||
| Heating | Ambient | Min. -15 | ||||
| Max. 24 | ||||||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 20m) | kg/m | |||
| Level difference | IU | OU | Max. | 15.0 | m | |
| IU | Max. | 7.5 | m | |||
| Total piping length | System | Actual | 50 | m | ||
| Power supply | Frequency | 50 | Hz | |||
| Phase | 1~ | ph | ||||
| Voltage | 220-240 | V | ||||
| Refrigerant | Charge | 2.2 | kg | |||
| Type | R-32 | |||||
| Sound pressure level | Cooling | Nom. | 46 | dBA | ||
| Weight | Unit | 60 | kg | |||
Specifications for EKHWET120BV3
| EKHWET120BAV3 | ||||||
|---|---|---|---|---|---|---|
| Mounting | Wall | |||||
| Casing | Colour | White + Black | ||||
| Material | Sheet metal, Acrylonitrile Butadiene Styrene | |||||
| Dimensions | Unit | Height | mm | 1283 | ||
| Width | 510 | |||||
| Depth | 570 | |||||
| Weight | Unit | Empty | 47 | |||
| Tank | Water volume | l | 118 | |||
| Material | Enamel coated steel acc. DIN4753TL2 | |||||
| Maximum water temperature | °C | 75.0 | ||||
| Energy efficiency class | C | |||||
| Heat exchanger | Domestic hot water | Quantity | 1 | |||
| Tube material | Aluminium | |||||
| Operating pressure | 42 | |||||
| Booster heater | Capacity | kW | 1.2 | |||
| Energy Efficiency Range | A+ ~ F | |||||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
